Description
Superior SteamPoint Series provide a newly designed keypad. Touch screen navigation makes it easier to operate steam shower while in use. All options are visible and user-friendly. Redesigned power cord eliminates installation errors and provides fast and easy connection. Superior SteamPoint Steam Generator is equipped with Auto-Drain to produce Always Fresh and Healthy Steam and it is ETL Certified!
- Steam generator is ETL certified

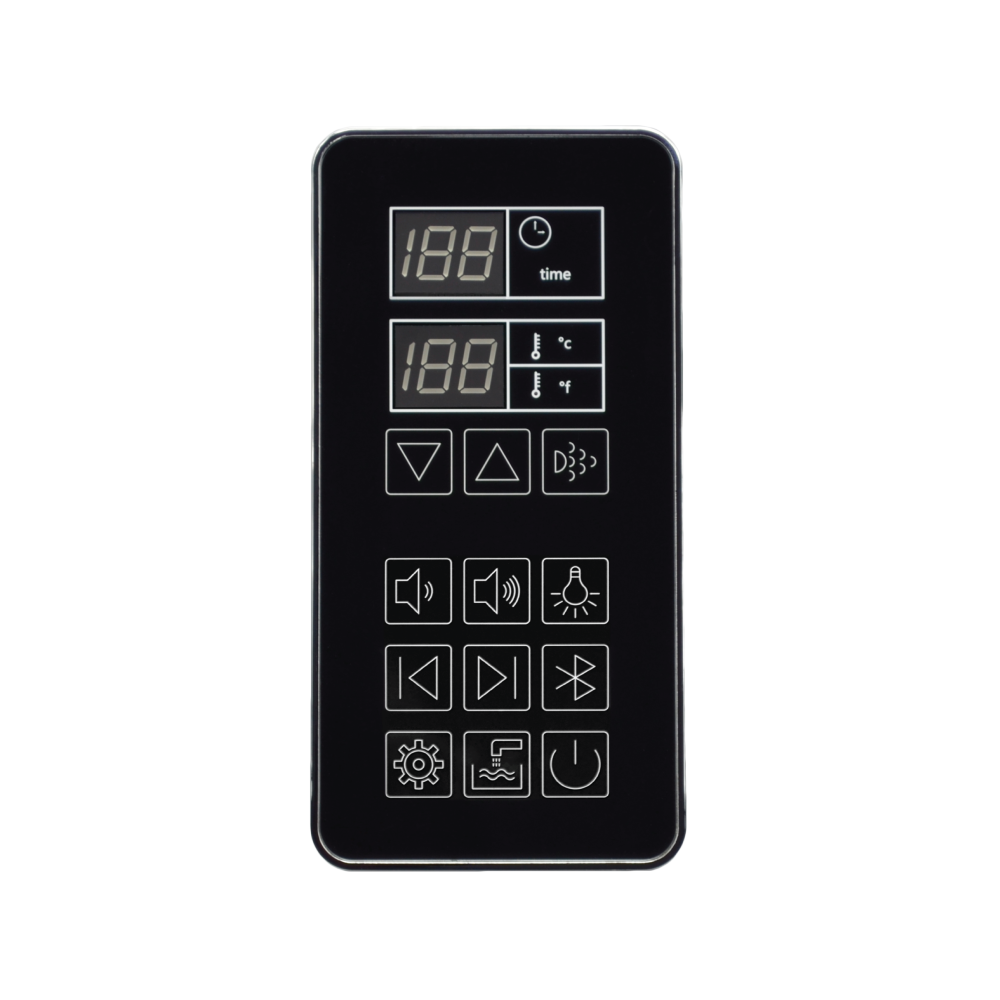

- SteamPoint Plus Digital Keypad
- New! Upgraded keypad connection cord for faster and easier installation
- Keypad can be mounted in or outside of the steam shower
- Encore Keypad has a built-in Temperature Sensor
TECHNICAL INFORMATION
24kw TECHNICAL INFORMATION
- Two 12kW Generators with each dimensions: 20 ½”L x 9 ½”W x 15 ½”H

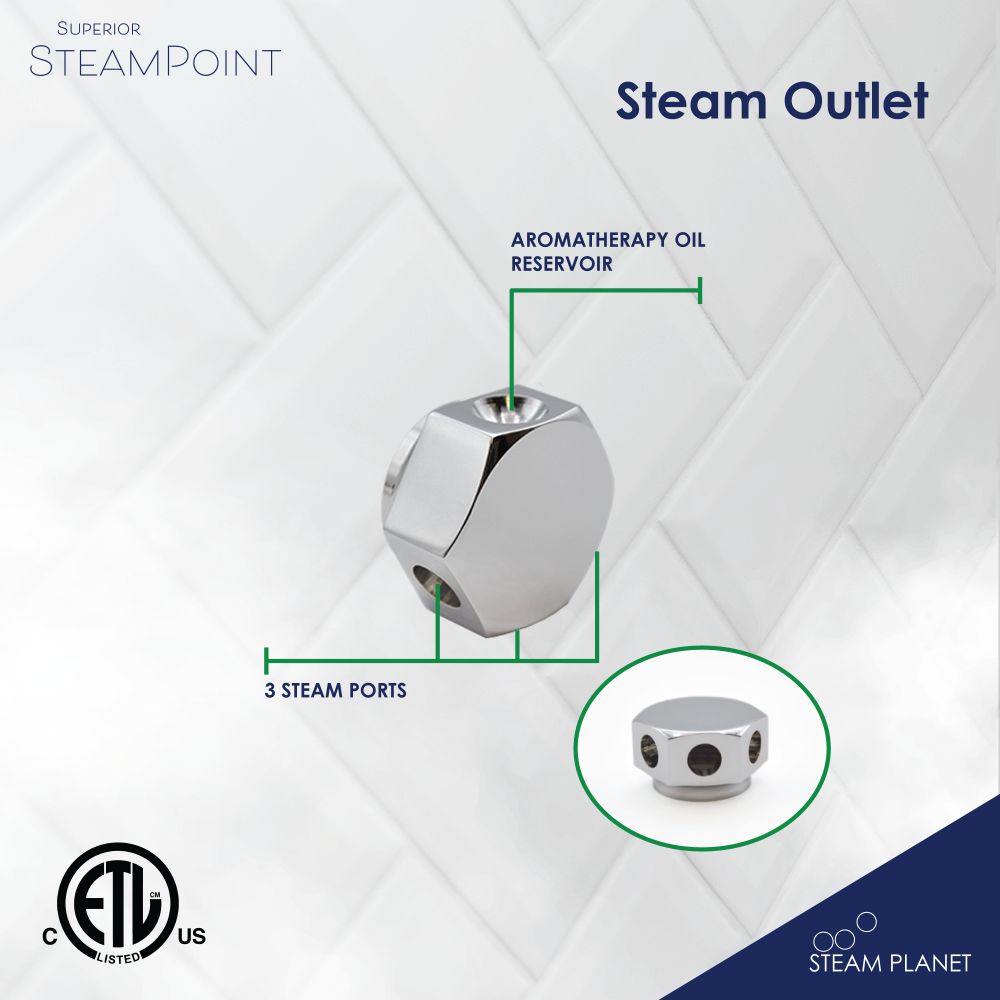

- Steam outlet per generator: two ¾” outlet
- Total cubic footage steam room: 700-1400
- 20 feet of connecting wire for control panel
- 12 V light output wire
- Each Generator: 220-volt/6-2 wire-60amp GFCI breaker (2 hot lines and 1 ground line)
- Water inlet and drain valves require ½ in. NPT fillings.
18kw TECHNICAL INFORMATION
- Two 9kW Generators with each dimensions: 19 ½”L x 6 ½”W x 14 ½”H
- Steam outlet per generator: single ¾” outlet
- Total cubic footage steam room: 460-920
- 20 feet of connecting wire for control panel
- 12 V light output wire
- Each Generator: 220-volt/8-2 wire-50amp GFCI breaker (2 hot lines and 1 ground line)
- Water inlet and drain valves require ½ in. NPT fillings.
12kw TECHNICAL INFORMATION
- Dimensions: 20 ½”L x 9 ½”W x 15 ½”H
- Steam outlet: two ¾” outlets
- Cubic footage steam room: 460-700 ft3
- 20 feet of connecting wire for control panel
- 12 V light output wire
- 220-volt/6-2 wire-60amp GFCI breaker (2 hot lines and 1 ground line)
- Water inlet and drain valves require ½ in. NPT fillings.

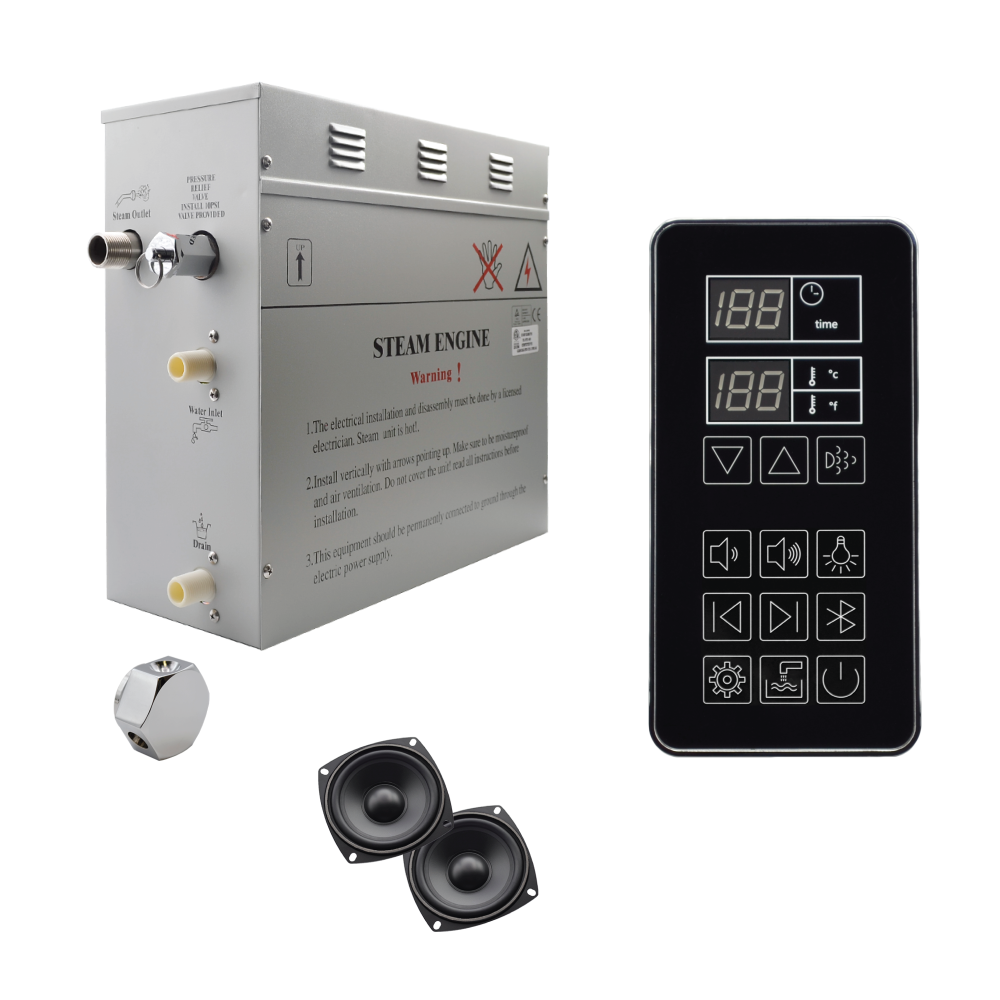

9kw TECHNICAL INFORMATION
- Dimensions: 19 ½”L x 6 ½”W x 14 ½”H
- Steam outlet: single ¾” outlet
- Cubic footage steam room: 320-460 ft3
- 20 feet of connecting wire for control panel
- 12 V light output wire
- 220-volt/8-2 wire-50amp GFCI breaker (2 hot lines and 1 ground line)
- Water inlet and drain valves require ½ in. NPT fillings.
6kw TECHNICAL INFORMATION
- Dimensions: 19 ½”L x 6 ½”W x 14 ½”H
- Steam outlet: single ¾” outlet
- Cubic footage steam room: 140-320 ft3
- 20 feet of connecting wire for control panel
- 12 V light output wire
- 220-volt/10-2 wire-30amp GFCI breaker (2 hot lines and 1 ground line)
- Water inlet and drain valves require ½ in. NPT fillings
