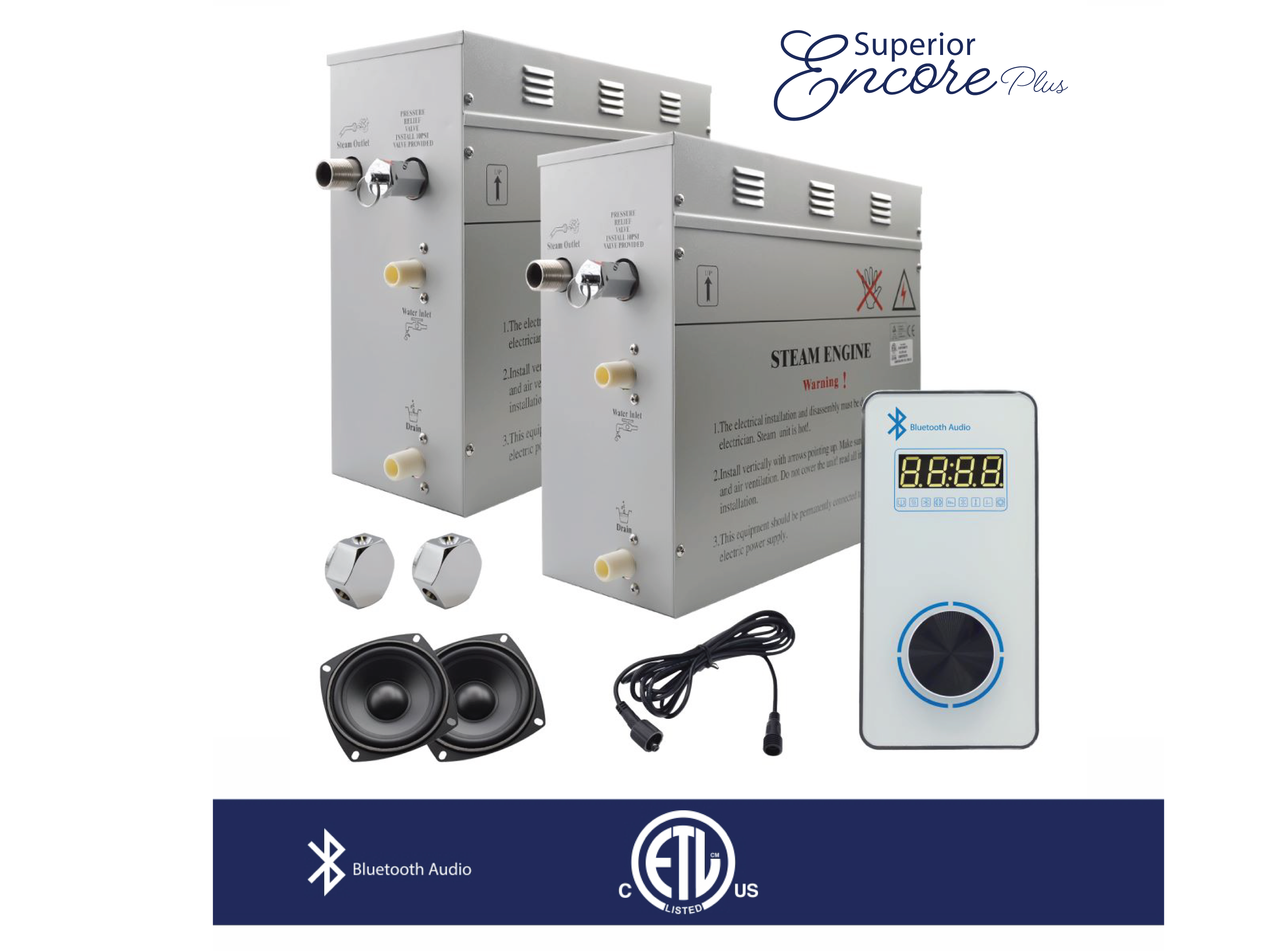

Superior Encore Plus 18kw Steam Generator Kit

Model #: GH18X

Steam Planet is introducing a new Steam Generator Series! Superior Encore Plus is a reengineered series which comes with multiple upgrades for easier installation. Our new keypads have a built-in thermostat, so there is no need to make extra holes for the temperature probe. Major upgrade was made to a power cord for faster and easier keypad connection! Superior Encore Plus keypad has Bluetooth Audio feature, just connect the phone and listen to your favorite music! Steam Generator is equipped with Auto-Drain to produce Always Fresh and Healthy Steam and it is ETL Certified.



Category:

Description

Steam Planet is introducing a new Steam Generator Series! Superior Encore Plus is a reengineered series which comes with multiple upgrades for easier installation. Our new keypads have a built-in thermostat, so there is no need to make extra holes for the temperature probe. Major upgrade was made to a power cord for faster and easier keypad connection! Superior Encore Plus keypad has Bluetooth Audio feature, just connect the phone and listen to your favorite music! Steam Generator is equipped with Auto-Drain to produce Always Fresh and Healthy Steam and it is ETL Certified.

  • Steam generator is ETL certified
  • Encore Digital Keypad
  • Bluetooth Audio
  • New! Upgraded keypad connection cord for faster and easier installation
  • Keypad can be mounted in or outside of the steam shower
  • Encore Keypad has a built-in Temperature Sensor
  • Various Kits available at hwbpro.com

TECHNICAL INFORMATION

  • Two 9kW Generators with each dimensions: 19 ½”L x 6 ½”W x 14 ½”H
  • Steam outlet per generator: single ¾" outlet
  • Total cubic footage steam room: 460-920
  • 20 feet of connecting wire for control panel
  • 12 V light output wire
  • Each Generator: 220-volt/8-2 wire-50amp GFCI breaker (2 hot lines and 1 ground line)
  • Water inlet and drain valves require ½ in. NPT fillings
Installation & Operation Manual
