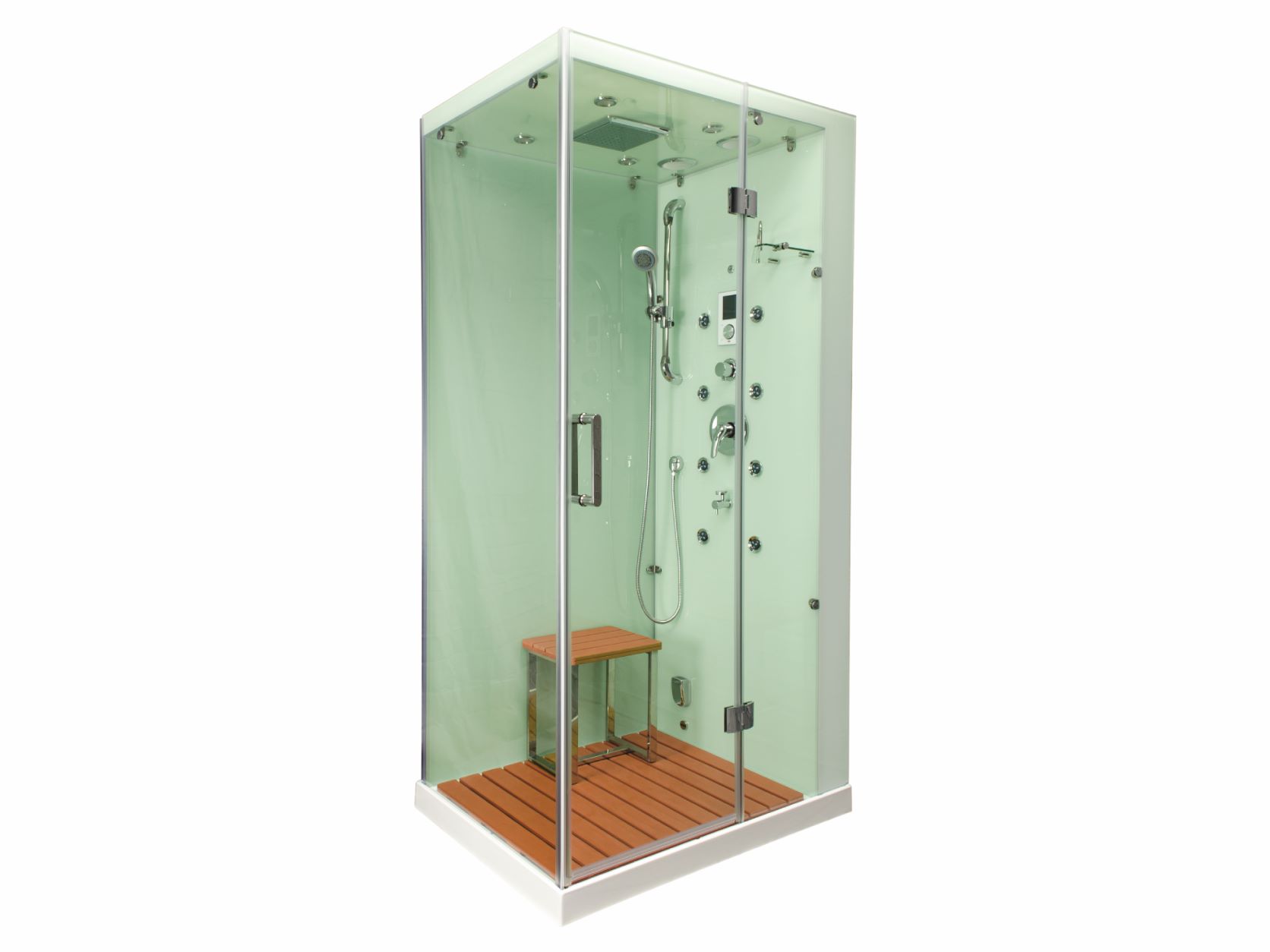

Jupiter Plus Steam Shower in White

Model #: M6020

Looking for a luxurious and innovative way to everyday relaxation? Jupiter Plus Steam Shower will fit you just right! This is a One Person Corner Steam Shower with extra space for you to enjoy! Jupiter Plus is equipped with a 3.5 Quick-Heating Steam Generator which has a built-in Auto Drain and Aromatherapy Cup. That way you can heat up your shower faster, make sure you are using fresh water every time you steam and boost up your mental state with aromatherapy oils! New feature of the Jupiter Plus is a BLUETOOTH Audio System and Hands-Free Incoming Phone Calls. Now you can listen to your favorite music and answer phone calls while showering!

Category:

Category:

Description

  •  3.5 kW Quick Heating Self-Draining Steam Generator w/Steam Aromatherapy Cup
  • Low Threshold 2.75″ H base included
  • 8 body massage jets
  • Hand-held Shower w/ Various water massage settings & adjustable height bracket
  • 8 in. wide water-drenching Rainfall Shower

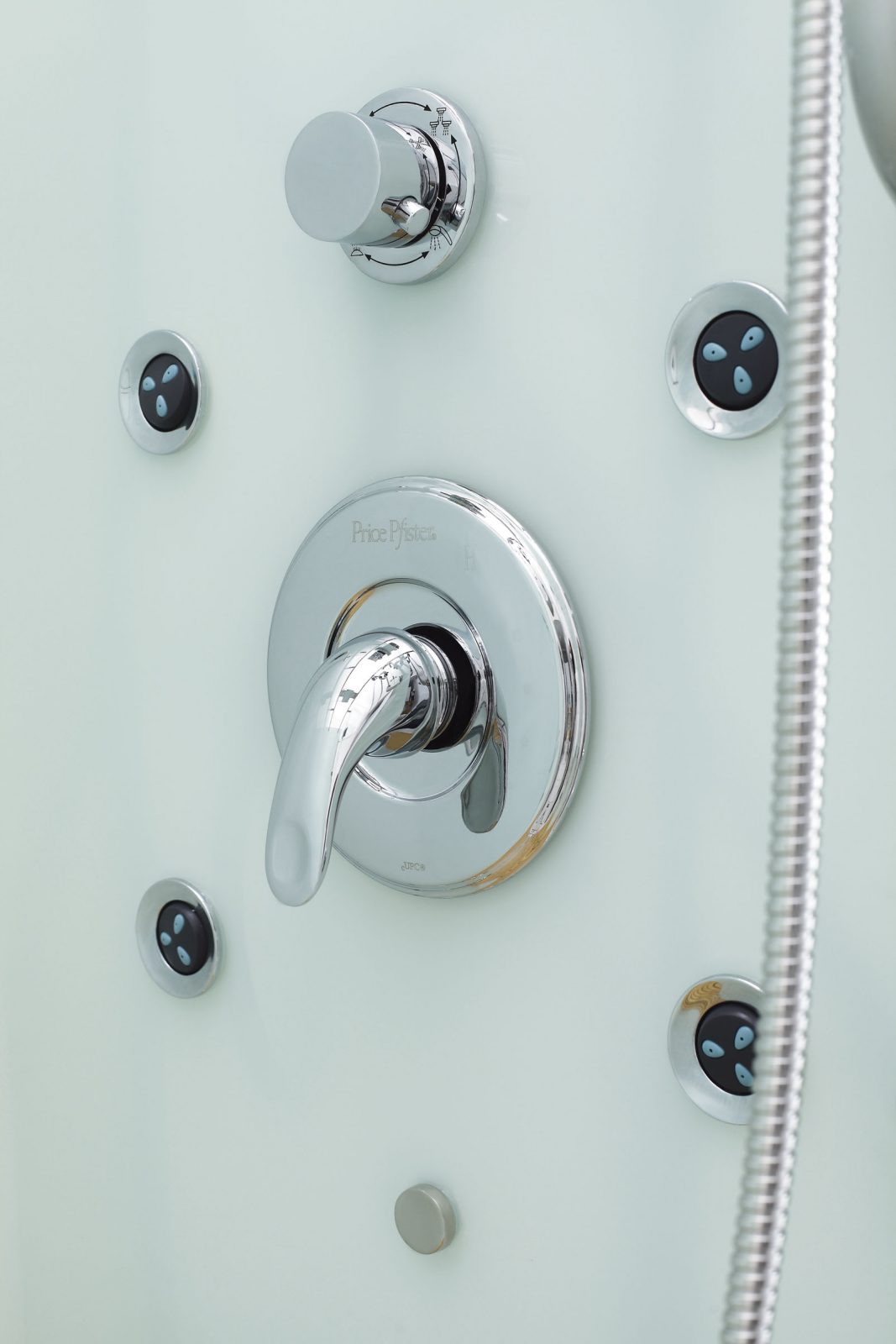

  • UPC CERTIFIED Thermostatic / Anti-scald Faucet -LIMITED LIFETIME WARRANTY
  • “Special Process” white Tempered Glass walls and front Clear Glass

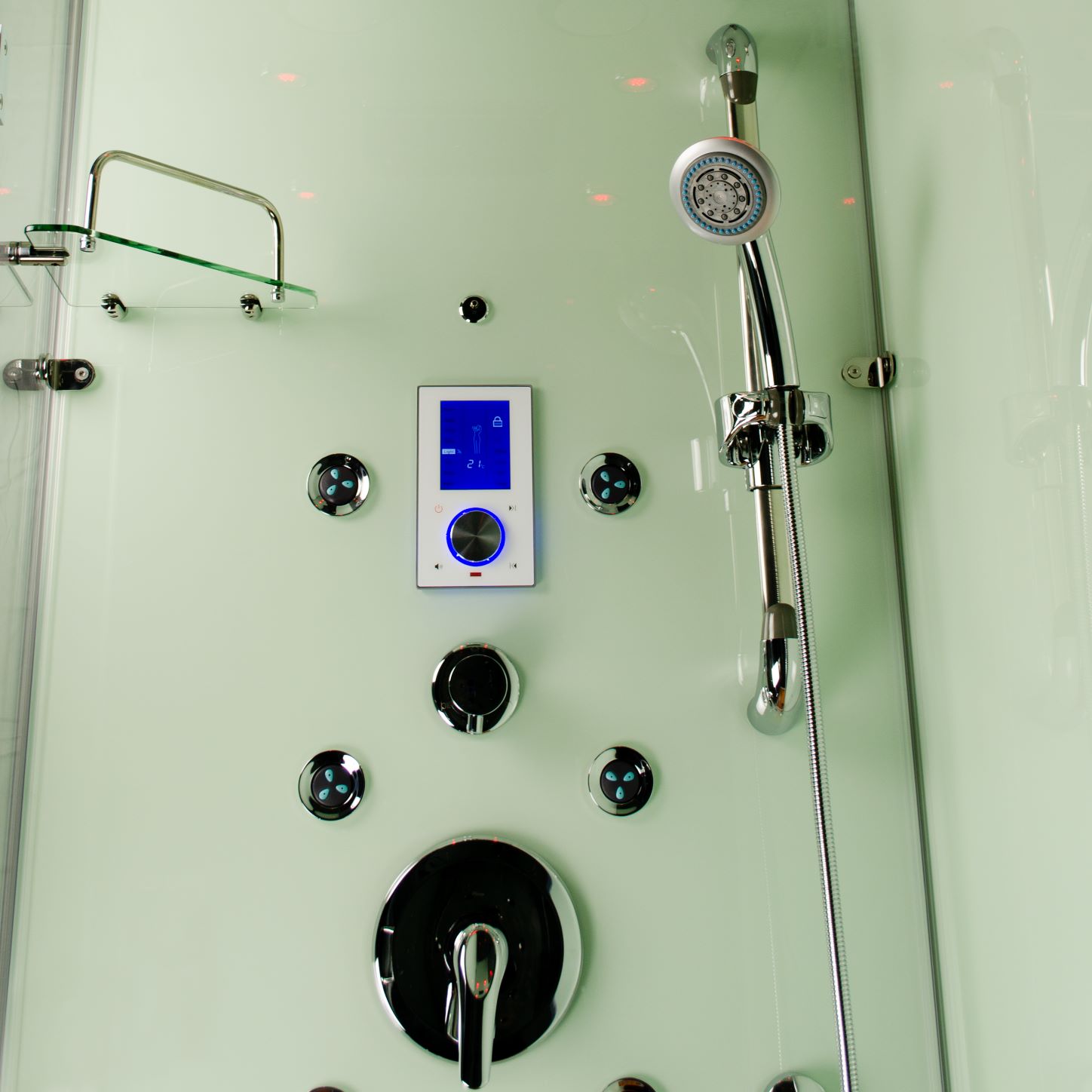

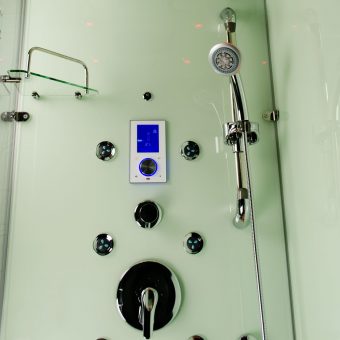

  • Built-in control key pad
  • FM Radio
  • RCA Output
  • New! Bluetooth audio and hands free incoming phone calls
  • “Chromotherapy” LED multiple Color Lighting
  • Waterproof shower grid

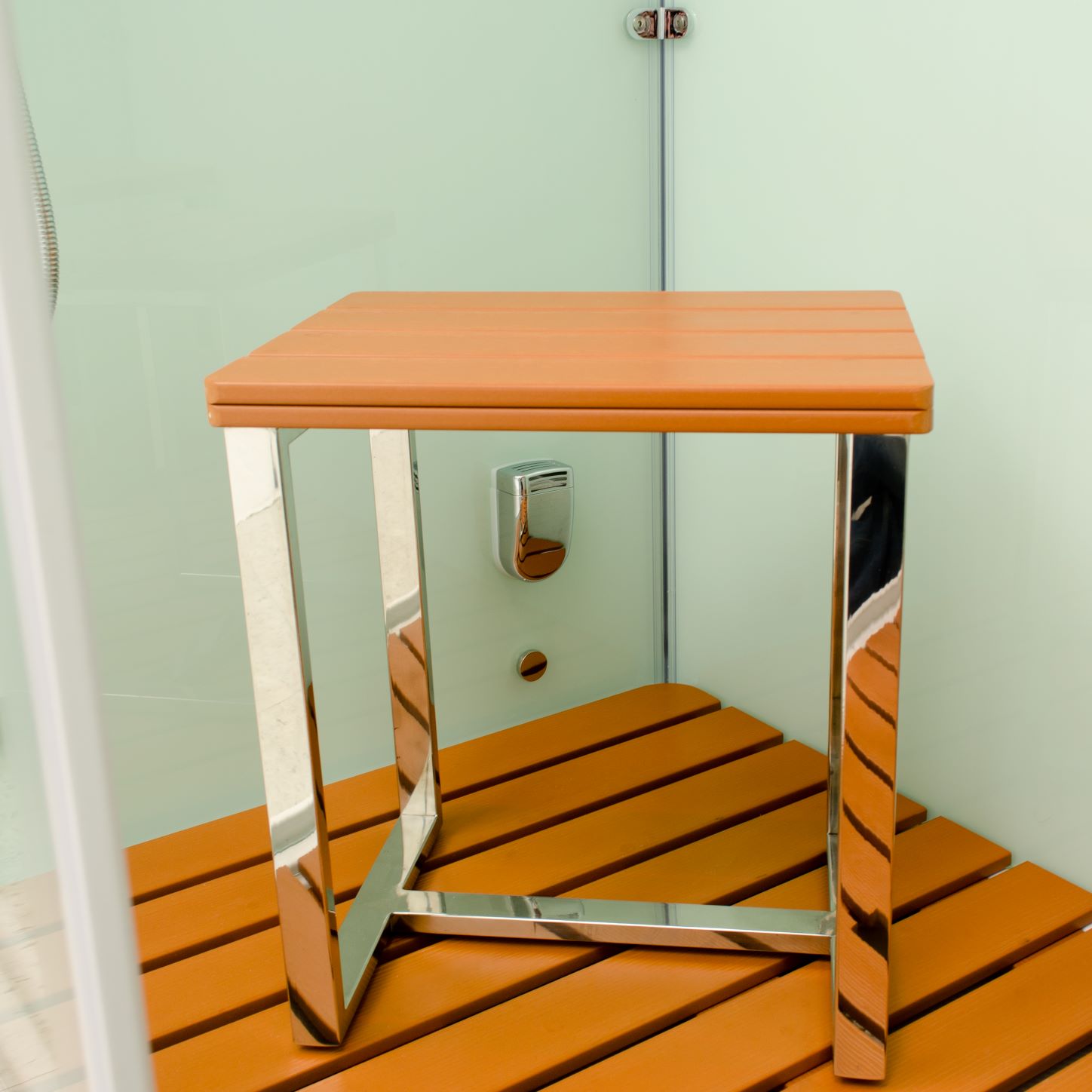

  • 1 removable bench
  • Circulation Fan for moving steam throughout the shower
  • Accessory rack
  • Hinged door
  • Available in Black or White, Left or Right Controls

*The Company shall bear no responsibility whatsoever for any act or failure to act by any entities installing and/or delivering the Company’s products to its customers.

GENERAL INFORMATION

  • Units come in panels and are assembled with screws, nuts, and bolts on site
  • This unit should be assembled inside the bathroom for convenience
  • Access panel area is recommended

Note:

All shower bases may need to be set in mortar for leveling purposes. It is advised to have base onsite before preparing drain location

TECHNICAL INFORMATION

  • Materials: tempered glass
  • Power supply: 20amp, 220V
  • Steam ready: 2-5 MIN
  • Dimensions: 43 L  x 31 W x 86 H IN

ELECTRICAL INFORMATION

  • 1 dedicated 12-2 line for steam (line 1, line 2, and ground)
  • 220 volt, 20 amp GFCI breaker
  • There is a length of wire from the main control box supplied to connect to power source

PLUMBING REQUIREMENTS

  • The unit is equipped with hot and cold, metal braided ½ inch water supply hose with ½ inch national pipe thread
  • Hot and cold shutoffs with ½ inch male national pipe thread (not included) should be installed
  • Supply hoses are to be connected from the faucet manifold on the unit to the shutoff valves
  • All water jet features are pre-plumbed with reinforced braided flexible supply hose
  • All fixtures and fittings must be checked for tightness as they may have been loosened during transportation. Access panel is recommended


Technical Data:
MaterialsTempered Glass
Power supply 220V, 3KW
Steam Ready5 Minutes
Size43 x 31 x 86 in
