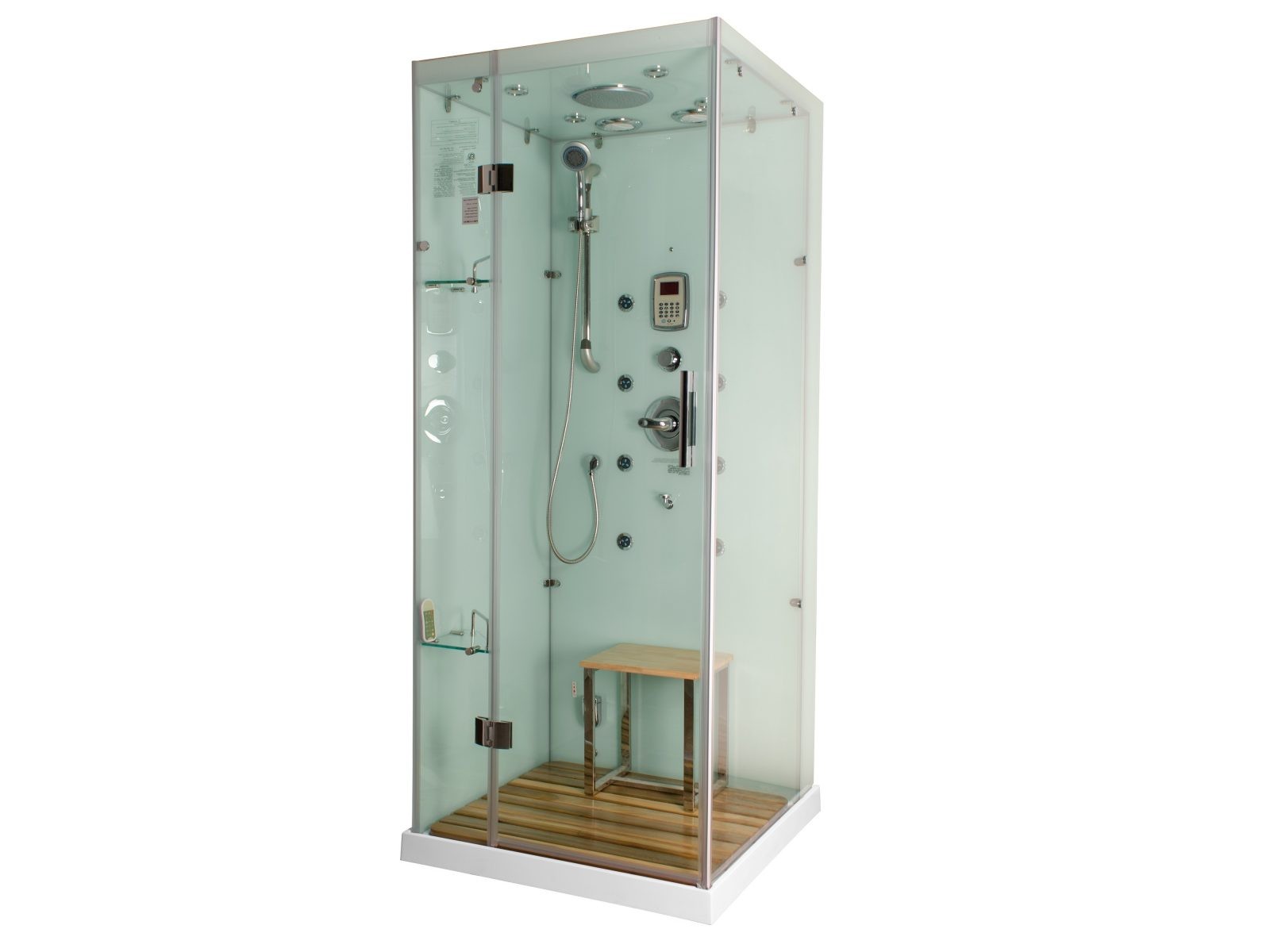

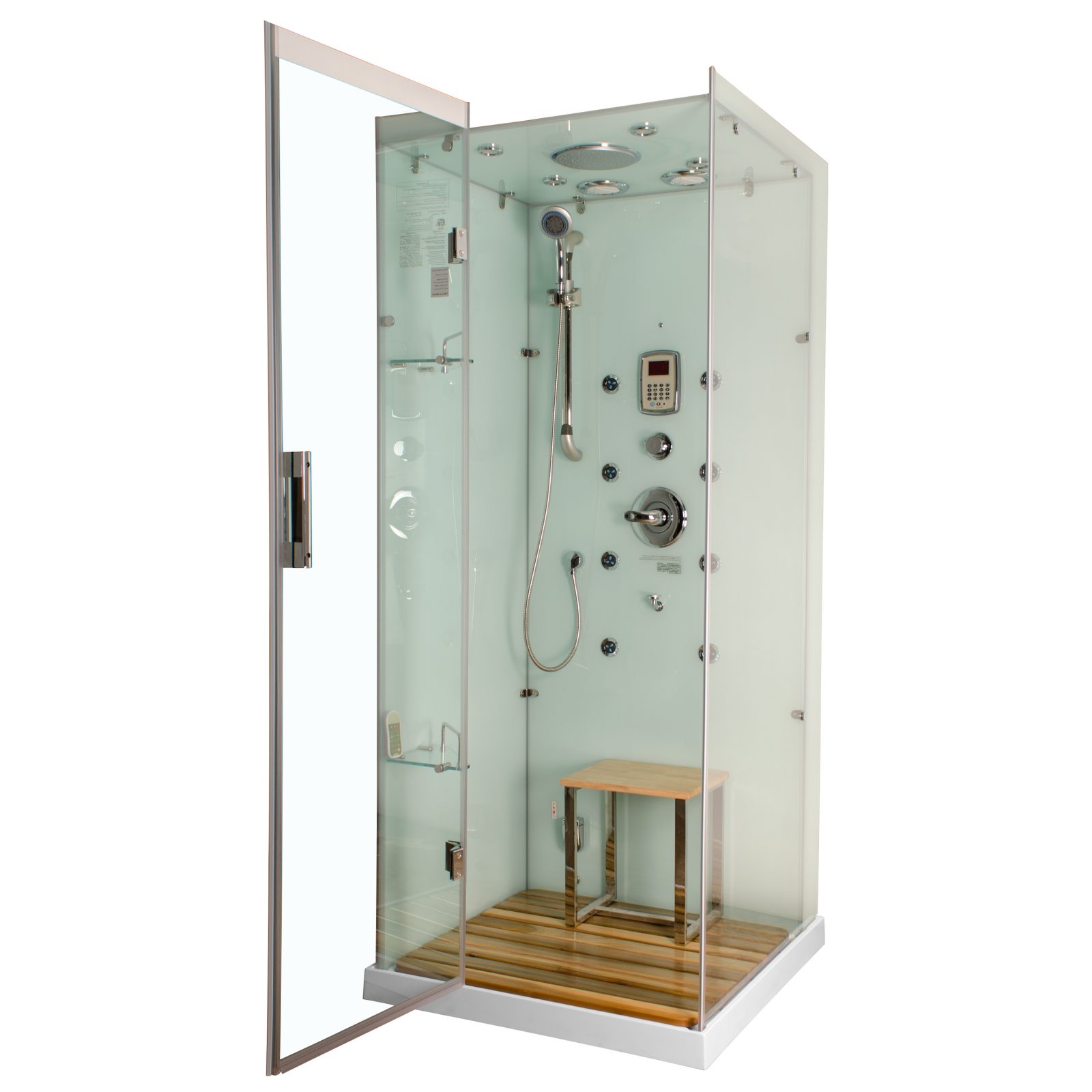

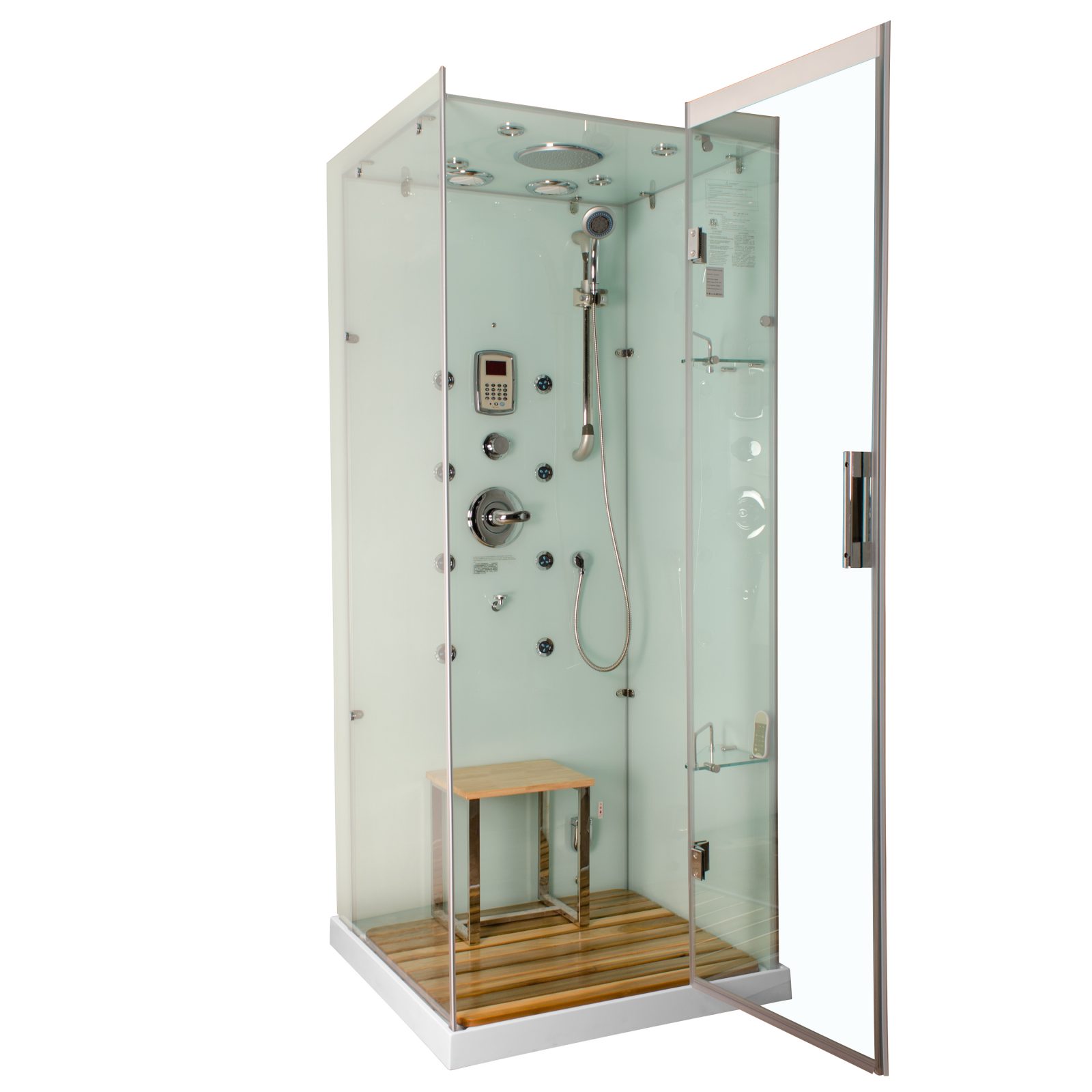

Jupiter Steam Shower in White

Model #: M6023

Homeward Bath is introducing Jupiter Steam Shower. This One Person Steam and Shower Enclosure includes a Quick-Heating 3.5 kW Steam Generator with Auto Drain to insure you get fast steaming process and using fresh water every time you choose to use steam option. If you are a music lover, or you listen to your favorite podcast everywhere you go, then the Jupiter Steam Shower is for you! It is featuring a BLUETOOTH Audio System and Hands Free Incoming Phone Calls! Just simply connect your phone to the shower and you are ready to go! Additionally, Jupiter Steam Shower is equipped with the multi-colored LED lights which illuminate the aromatherapy-filled steam to create the ultimate relaxation experience.

Category:

Description

Personal steam shower, size 35 x 35 x 86 H in

  •  3.5 kW Quick Heating Self-Draining Steam Generator w/Steam Aromatherapy Cup
  • Low Threshold 2.75″ H base included
  • 8 body massage jets
  • Hand-held Shower w/ Various water massage settings & adjustable height bracket
  • 8 in. wide water-drenching Rainfall Shower
  • UPC CERTIFIED Thermostatic / Anti-scald Faucet -LIMITED LIFETIME WARRANTY
  • “Special Process” white Tempered Glass walls and front Clear Glass
  • Built-in control key pad
  • FM Radio
  • RCA Output
  • New! Bluetooth audio and hands free incoming phone calls
  • “Chromotherapy” LED multiple Color Lighting
  • Waterproof shower grid
  • 1 removable bench
  • Circulation Fan for moving steam throughout the shower
  • Accessory rack
  • Hinged door
  • Available in Black or White, Left or Right Controls

*The Company shall bear no responsibility whatsoever for any act or failure to act by any entities installing and/or delivering the Company’s products to its customers.

GENERAL INFORMATION

  • Units come in panels and are assembled with screws, nuts, and bolts on site
  • This unit should be assembled inside the bathroom for convenience
  • Access panel area is recommended

Note:

All shower bases may need to be set in mortar for leveling purposes. It is advised to have base onsite before preparing drain location

TECHNICAL INFORMATION

  • Materials: tempered glass
  • Power supply: 20amp, 220V
  • Steam ready: 2-5 MIN
  • Dimensions: 35 L x 35 W x 86 H IN

ELECTRICAL INFORMATION

  • 1 dedicated 12-2 line for steam (line 1, line 2, and ground)
  • 220 volt, 20 amp GFCI breaker
  • There is a length of wire from the main control box supplied to connect to power source

PLUMBING REQUIREMENTS

  • The unit is equipped with hot and cold, metal braided ½ inch water supply hose with ½ inch national pipe thread
  • Hot and cold shutoffs with ½ inch male national pipe thread (not included) should be installed
  • Supply hoses are to be connected from the faucet manifold on the unit to the shutoff valves
  • All water jet features are pre-plumbed with reinforced braided flexible supply hose
  • All fixtures and fittings must be checked for tightness as they may have been loosened during transportation. Access panel is recommended


Technical Data:
Materials Tempered glass
Power supply 220V, 3KW
Steam Ready 5 minutes
Size 35 x 35 x 86 in
