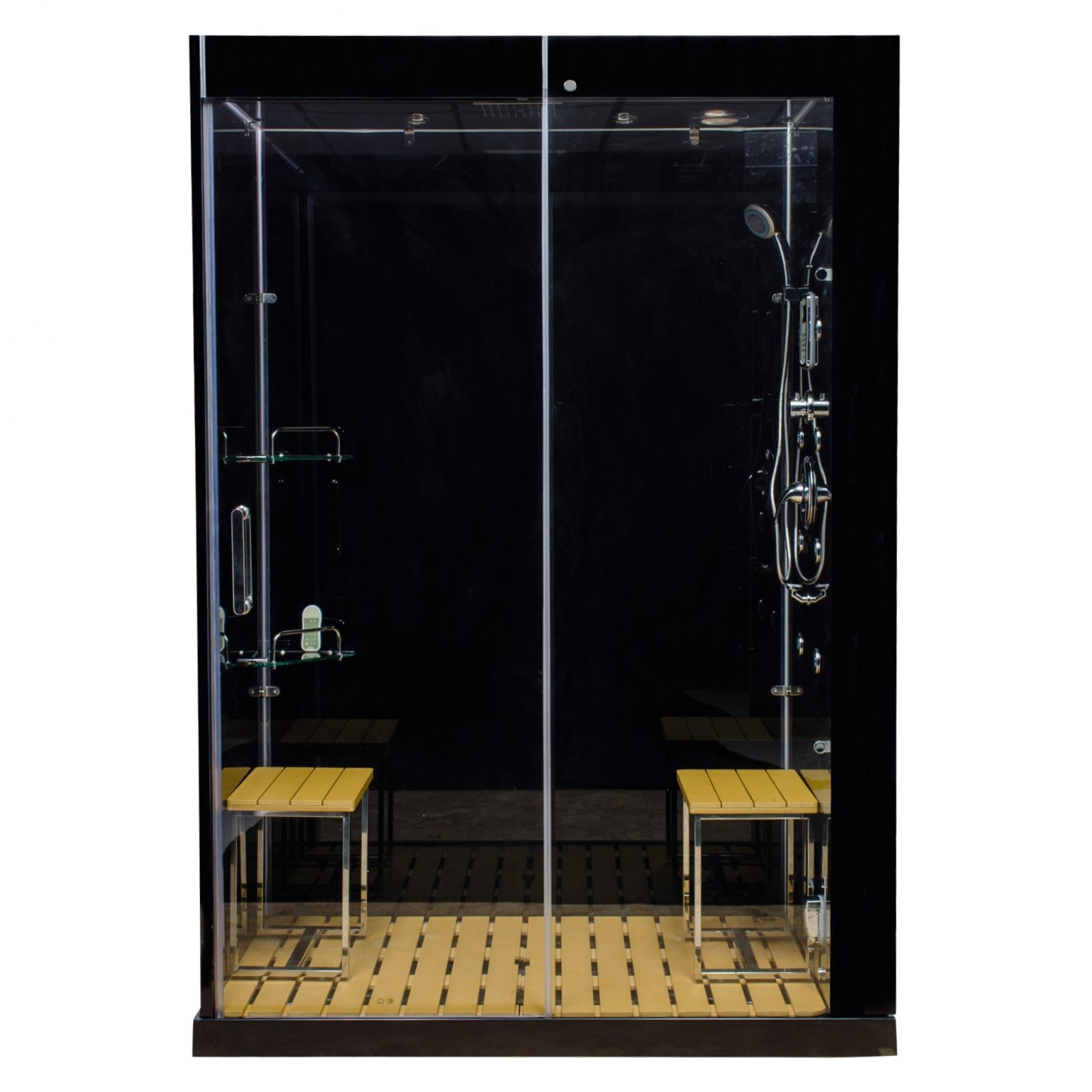

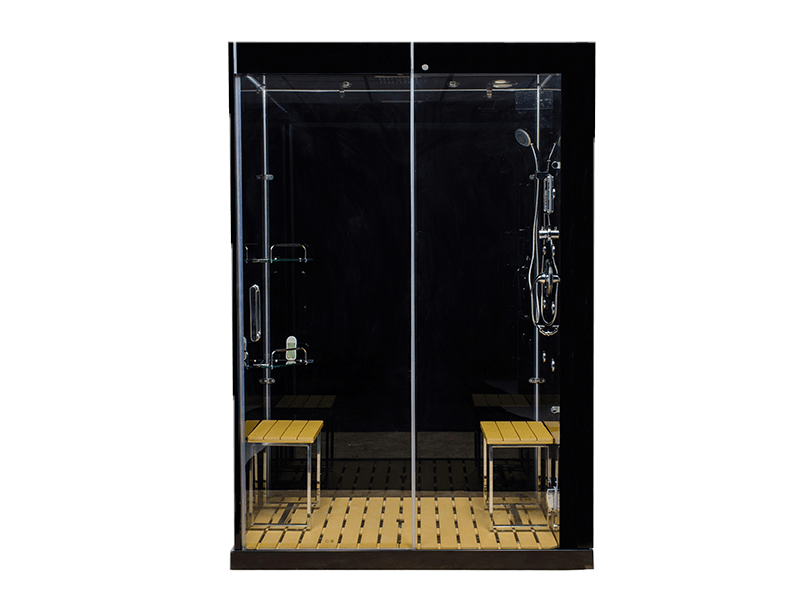

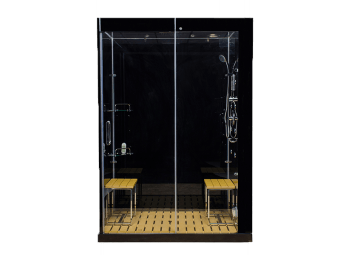

Venus Steam Shower with Sliding Door in Black

Model #: M6030

Venus Steam Shower is a unique unit in Homeward Bath Contemporary Series. It is not only common size shower (59’’ x 32’’) but it also has a Sliding Door to save up some space in your bathroom! Along with that it is equipped with everything you might need for a total relaxation! A 3.5 kW Quick-Heating Steam Generator with built-in Auto Drain and Aromatherapy Cup will bring you fast, clean and energy boosting steam! New feature will excite music lovers – BLUETOOTH Audio System and Hands-Free Incoming Phone Calls let you listen to your favorite music while showering! Just pair your phone to the shower and you are ready to go!

Category:

Description

  • 2016 Platinum ADEX Award for Design Excellence
  • Two person Steam and Shower Enclosure

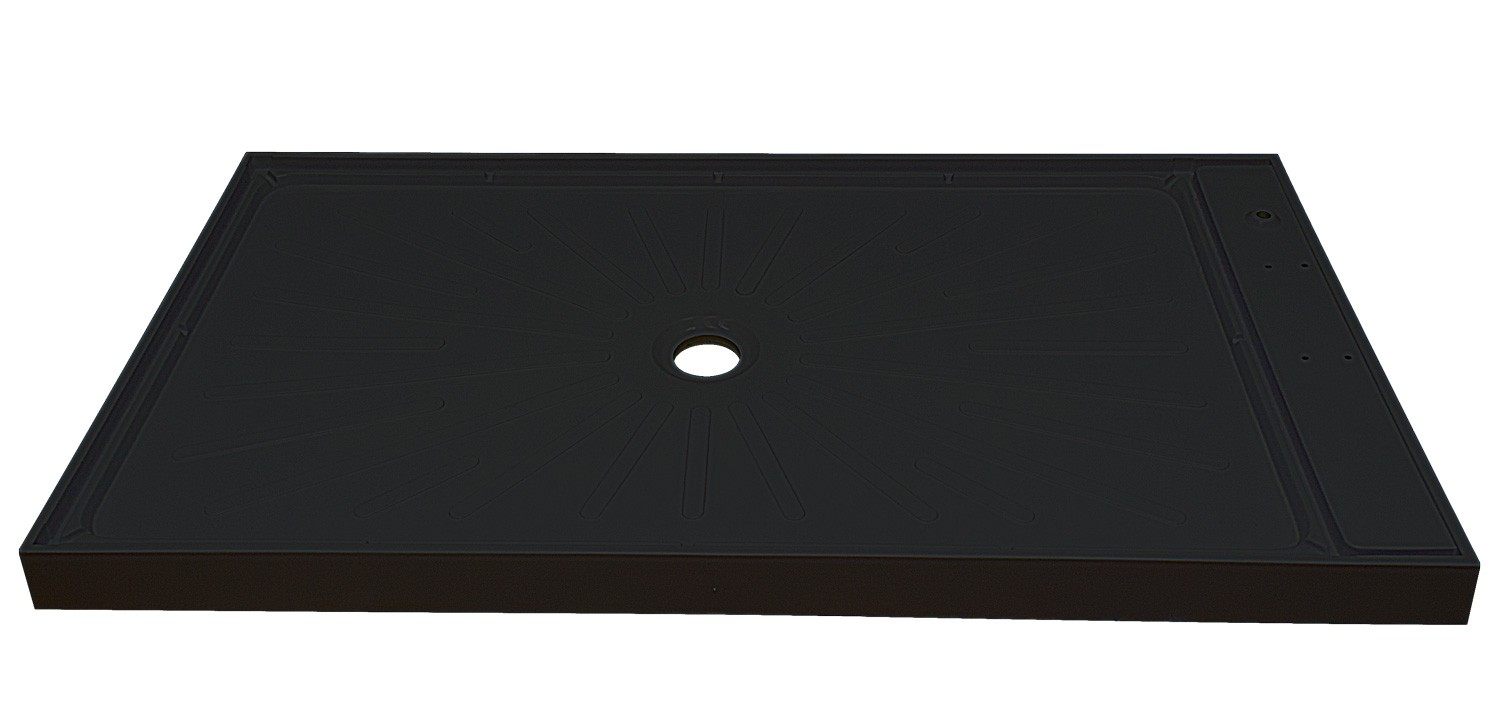

  • Low Threshold 2.75″ H Base included
  • 3.5 KW Quick Heating Self-Draining Steam Generator w/Steam Aromatherapy Cup

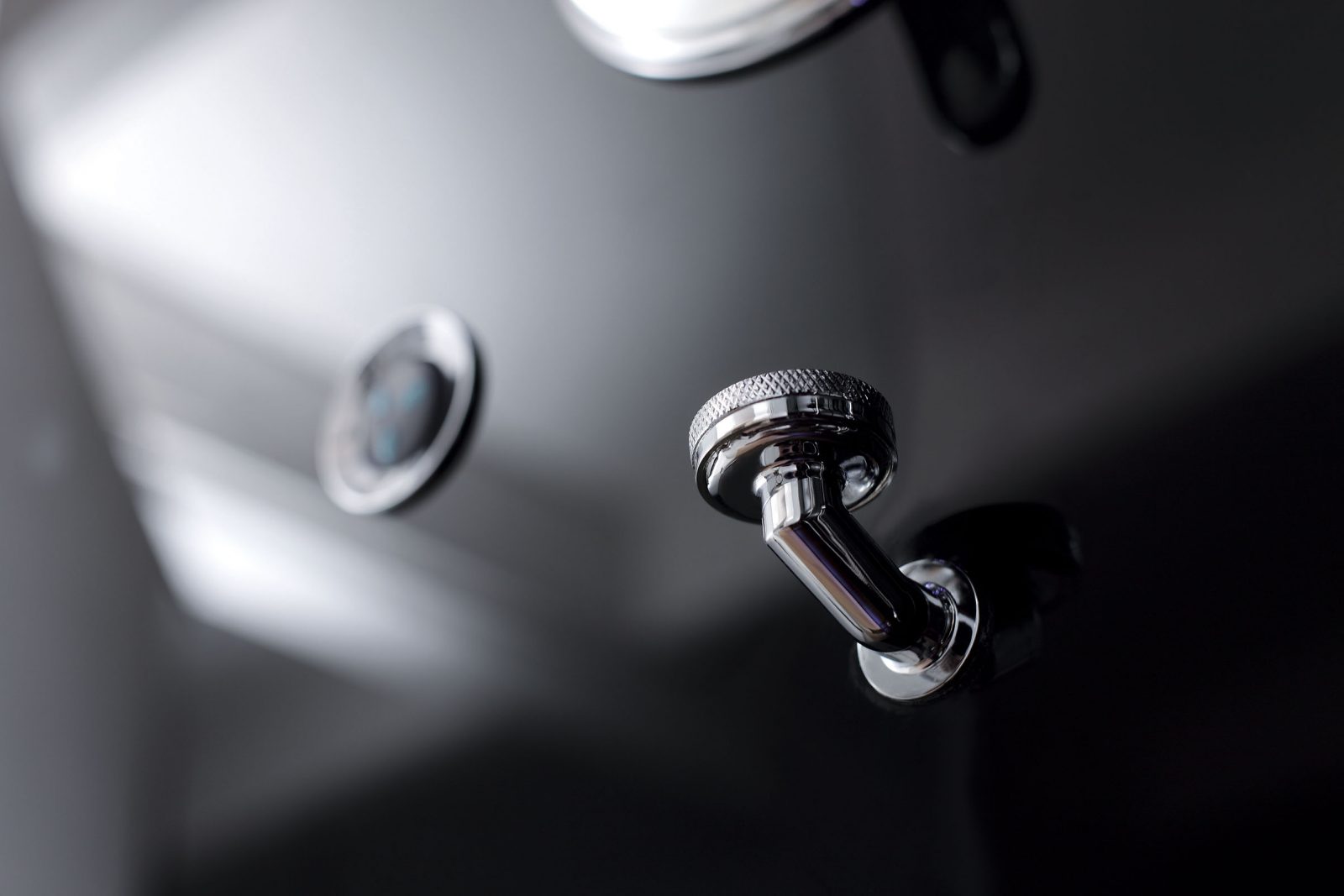

  • 8 body massage jets

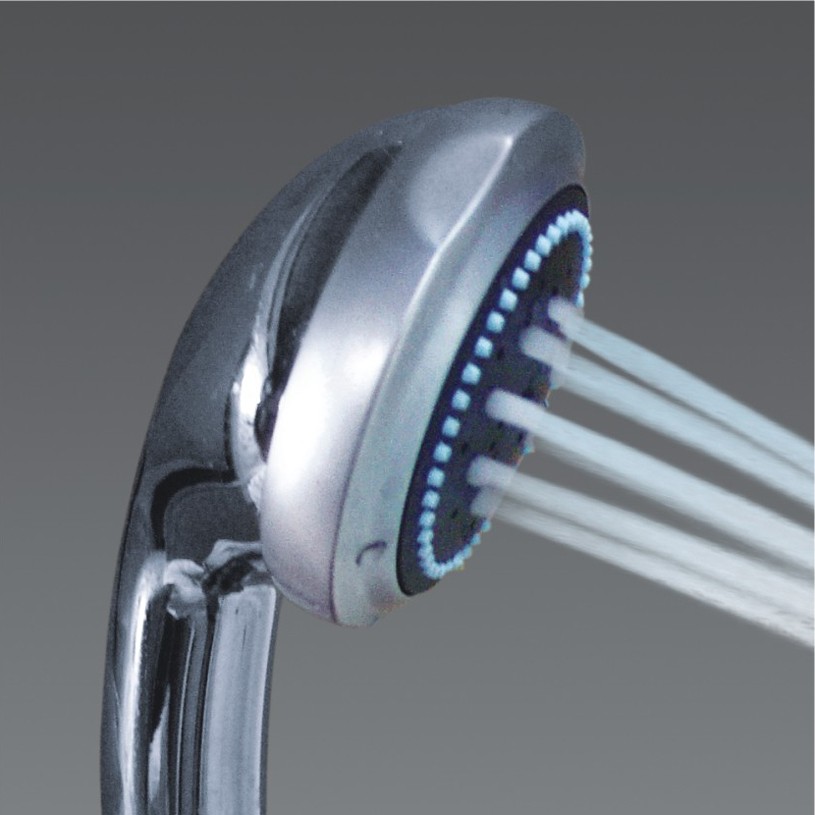

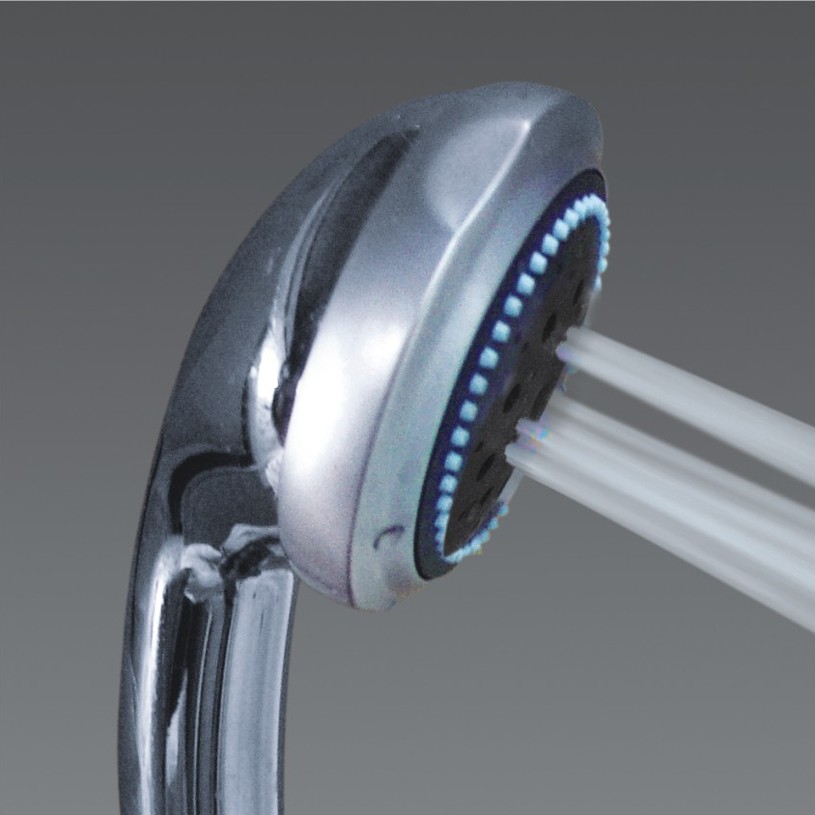

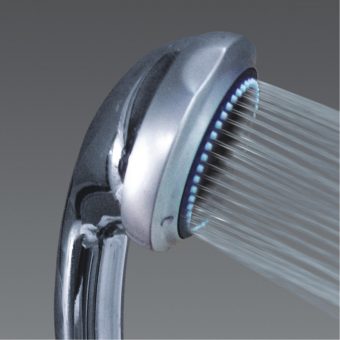

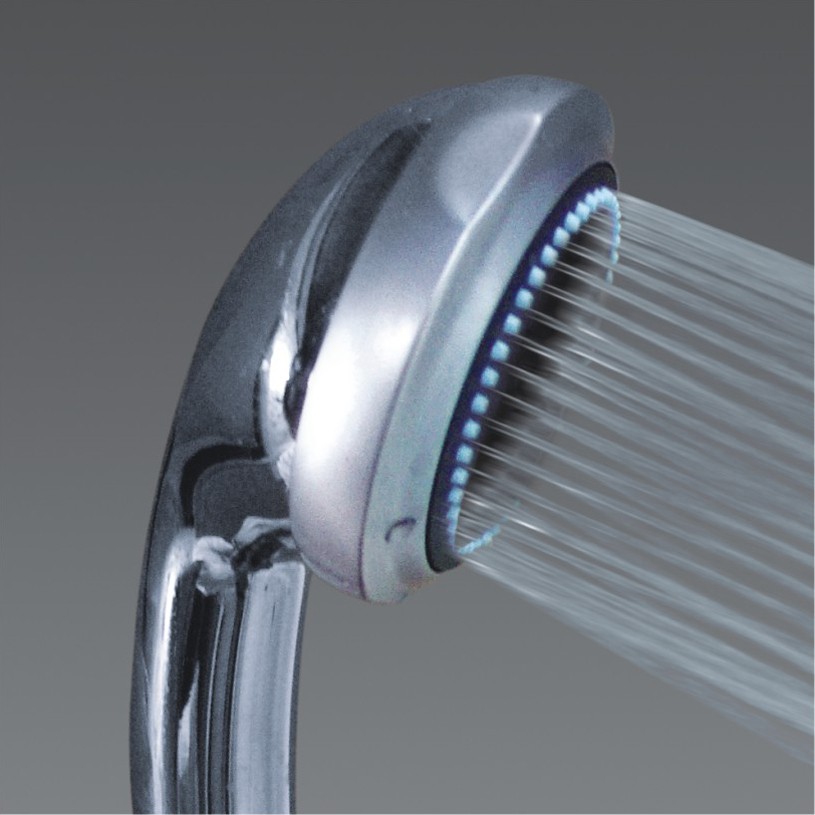

  • Hand-held Shower w/ Various water massage settings & adjustable height bracket

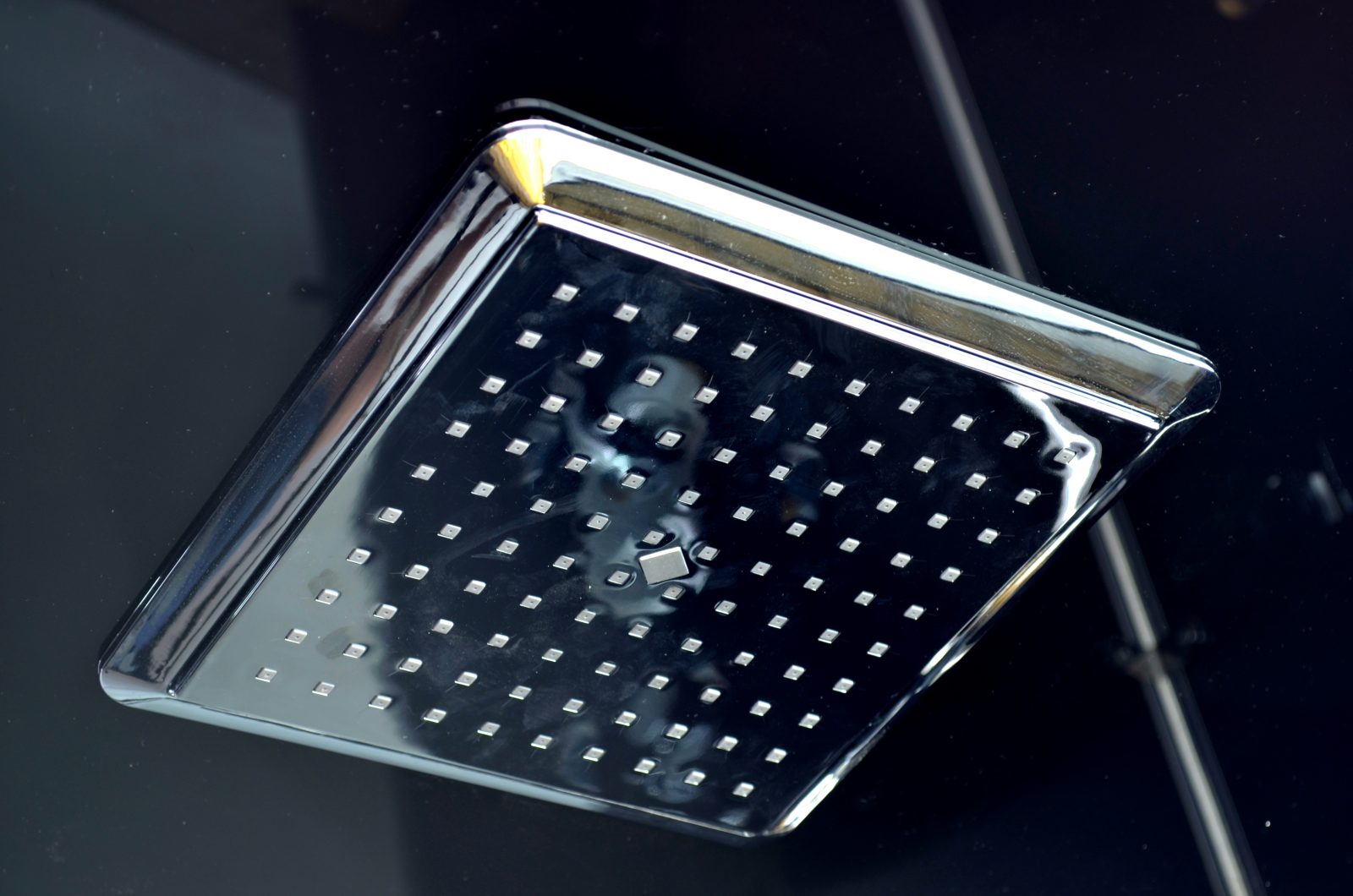

  • 8 in. wide water-drenching Rainfall Shower
  • UPC CERTIFIED Thermostatic / Anti-scald Faucet -LIMITED LIFETIME WARRANTY
  • “Special Process” black Tempered Glass walls and front Clear Glass
  • Built-in control key pad
  • FM Radio
  • RCA Output
  • New! Bluetooth audio system and hands-free phone calls
  • “Chromotherapy” LED multiple Color Lighting
  • Waterproof shower grid

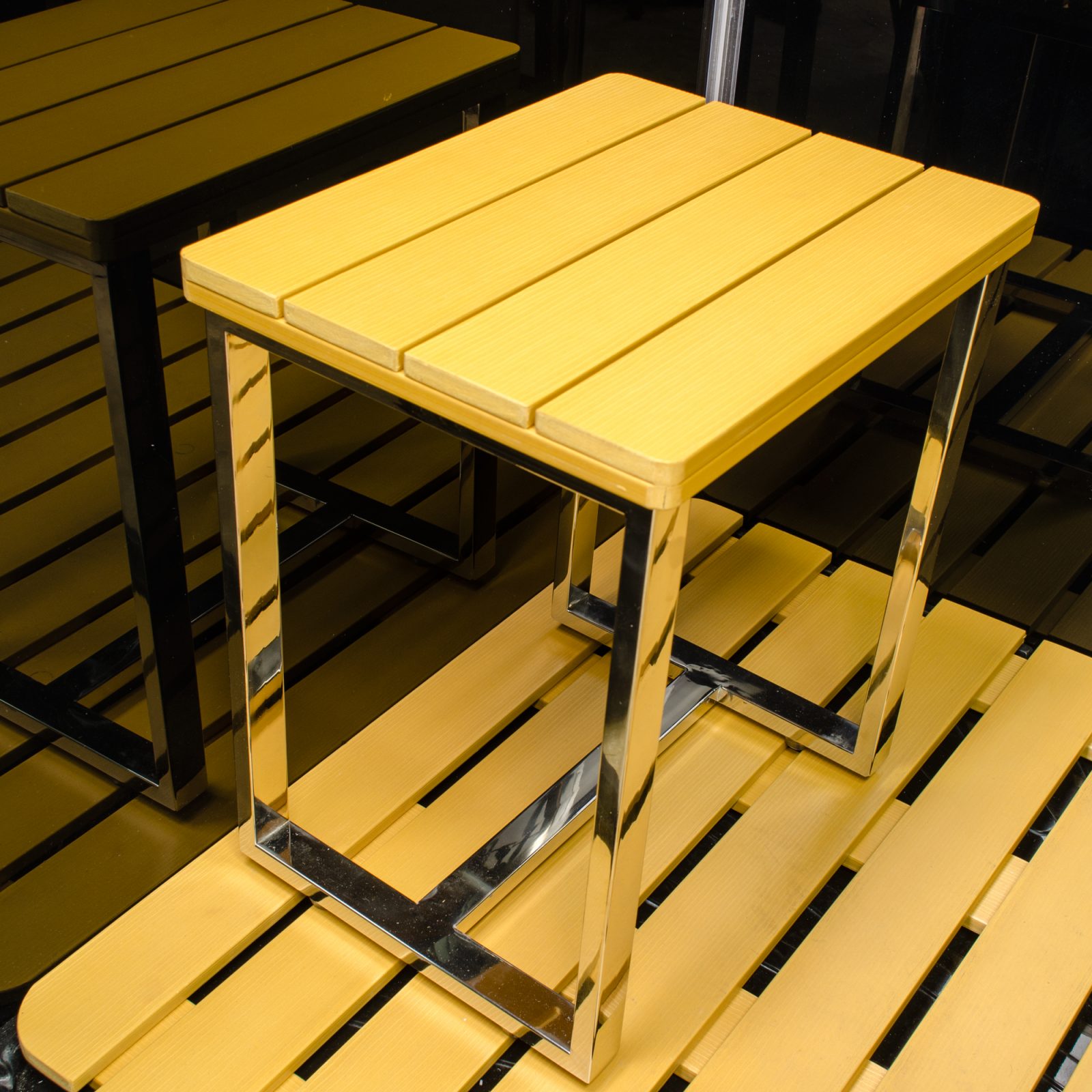

  • 2 removable waterproof benches

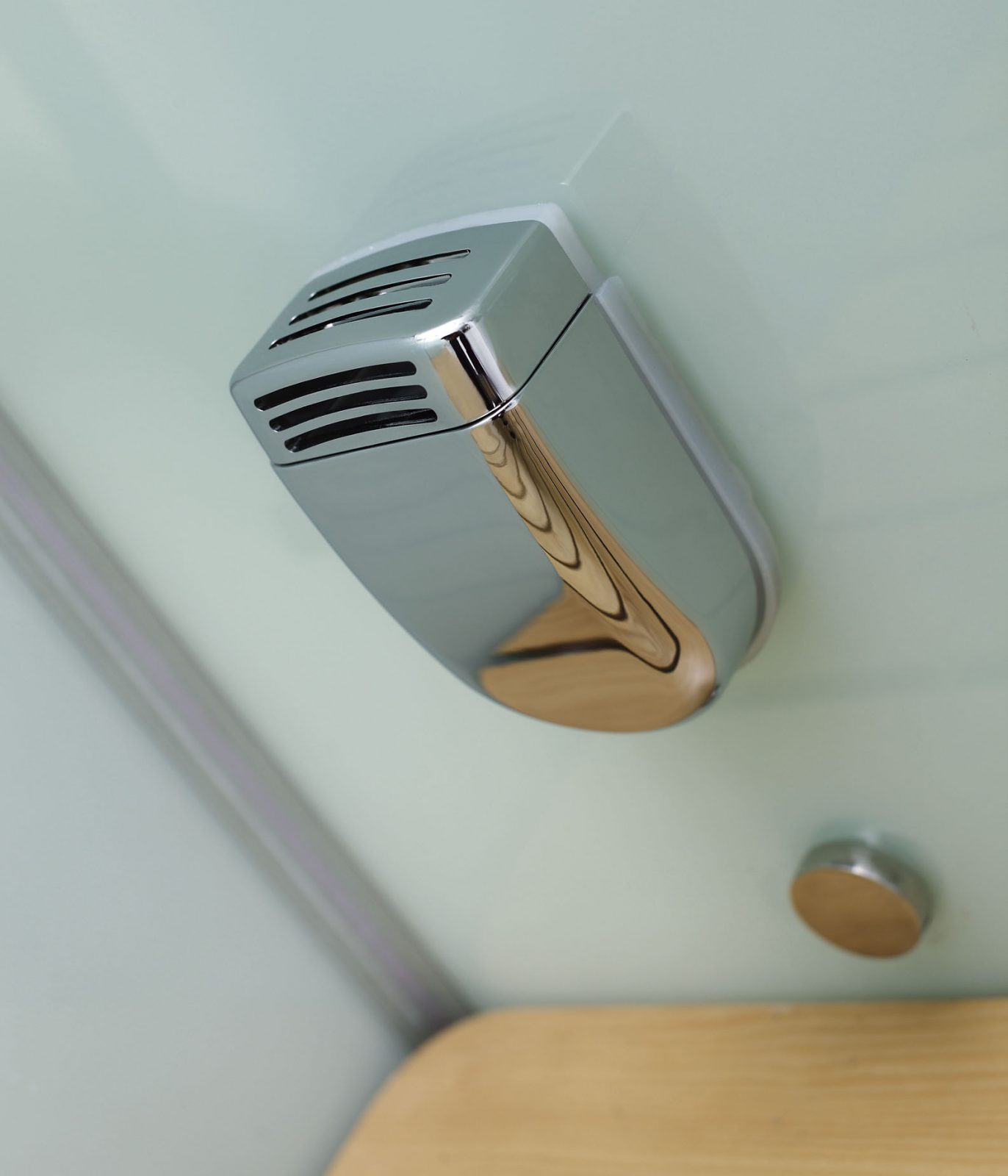

  • Circulation Fan for moving steam throughout the shower
  • Accessory racks

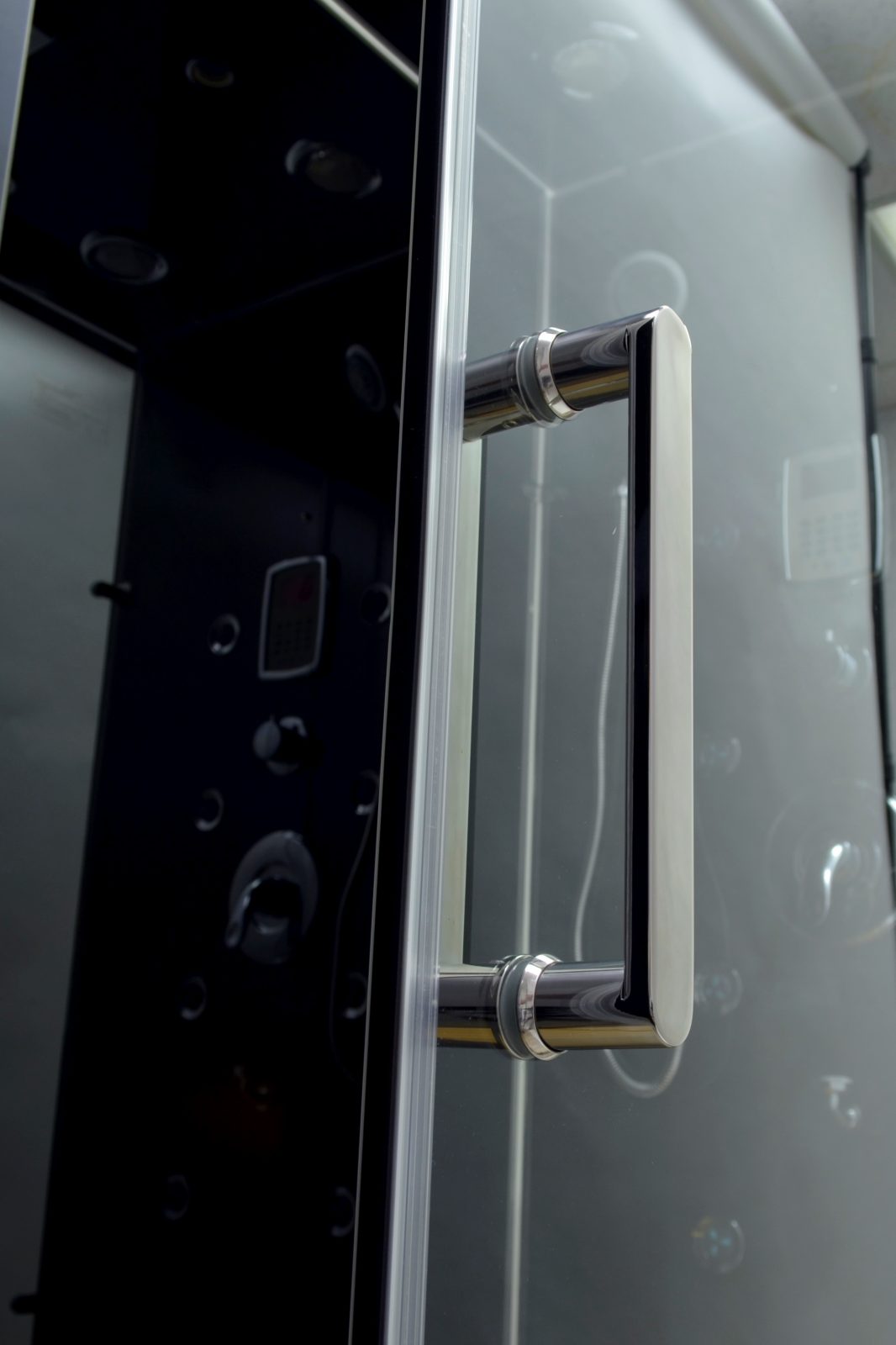

  • Sliding door
  • Available in Black or White, Left or Right Controls

Lowes Model Number: M6030, NE3060, NE3060LB, NE3060RB,



*The Company shall bear no responsibility whatsoever for any act or failure to act by any entities installing and/or delivering the Company’s products to its customers.

GENERAL INFORMATION

  • Units come in panels and are assembled with screws, nuts, and bolts on site
  • This unit should be assembled inside the bathroom for convenience
  • Access panel area is recommended

Note:

All shower bases may need to be set in mortar for leveling purposes. It is advised to have base on-site before preparing drain location

TECHNICAL INFORMATION

  • Materials: Tempered glass
  • Power supply: 20amp, 220V
  • Steam ready: 2-5 MIN
  • Dimensions: 59 x 32 x 86 H IN

ELECTRICAL INFORMATION

  • 1 dedicated 12-2 line for steam (line 1, line 2, and ground)
  • 220 volt, 20 amp GFCI breaker
  • There is a length of wire from the main control box supplied to connect to power source

PLUMBING REQUIREMENTS

  • The unit is equipped with hot and cold, metal braided ½ inch water supply hose with ½ inch national pipe thread
  • Hot and cold shutoffs with ½ inch male national pipe thread (not included) should be installed
  • Supply hoses are to be connected from the faucet manifold on the unit to the shutoff valves
  • All water jet features are pre-plumbed with reinforced braided flexible supply hose
  • All fixtures and fittings must be checked for tightness as they may have been loosened during transportation. Access panel is recommended


Technical Data:
MaterialsTempered Glass
Power Supply220V, 3kW
Steam Ready5 Minutes
Size59 x 32 x 86 in
  M6028 Left M6028 Right
Installation Manual
