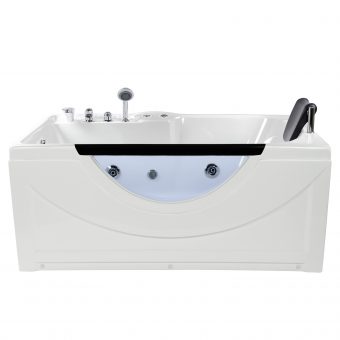

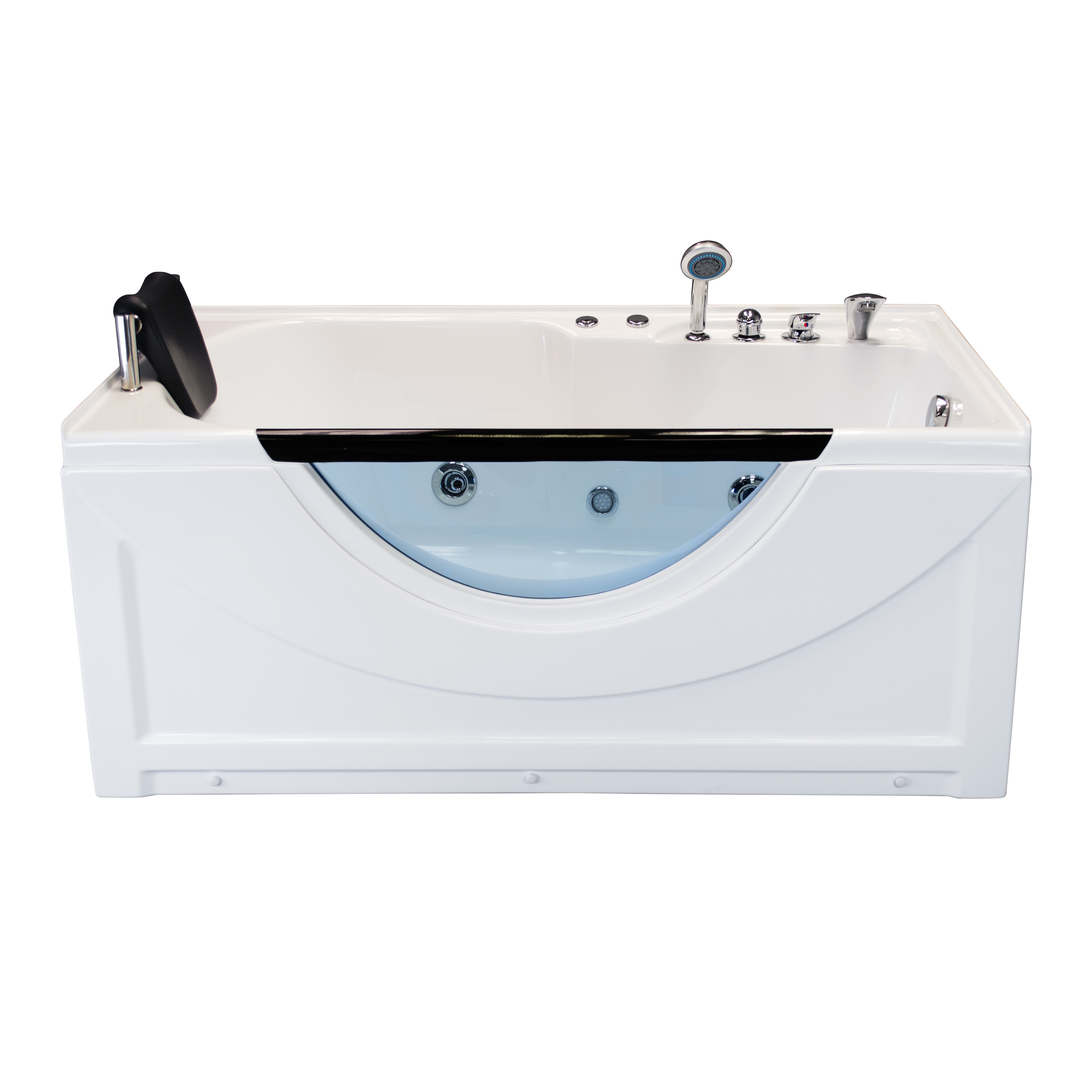

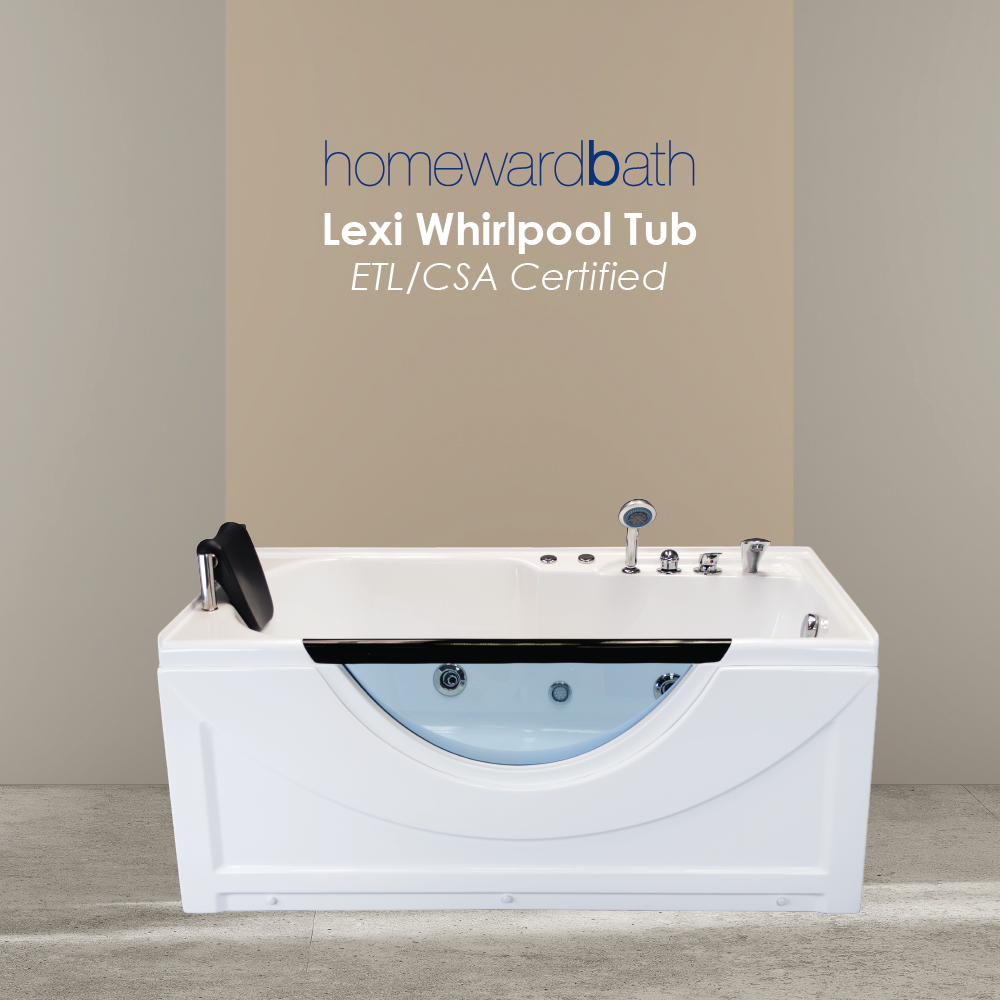

Lexi Massage Bathtub

Model #: MG017

Model #: MG017

Create a relaxing spot in your own house. Introducing Homeward Bath’s Luxurious heated whirlpool bathtub. This tub is freestanding and standing on leveling feet that make the installation easy.

Category:

Description

One person whirlpool bathtub, size 34.5 x 59.5 x 26.5 H in

  • One person whirlpool tub
  • Inline heater included

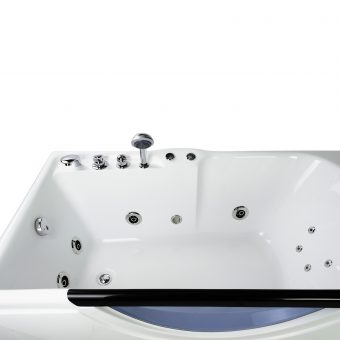

  • 10 water jets
  • Polished finish
  • Decorative clear glass

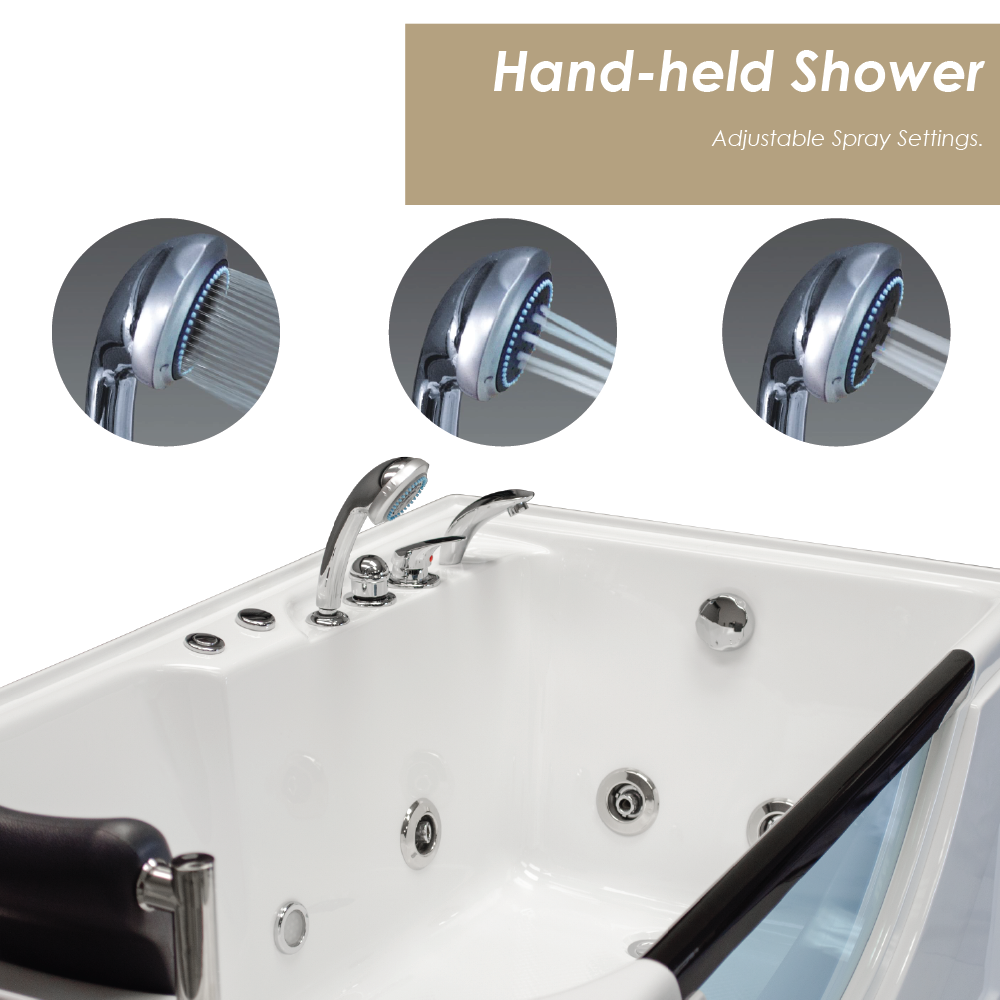

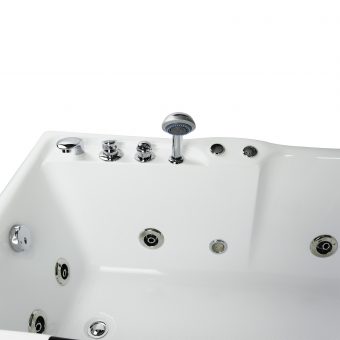

  • Hand held shower with adjustable water spray settings

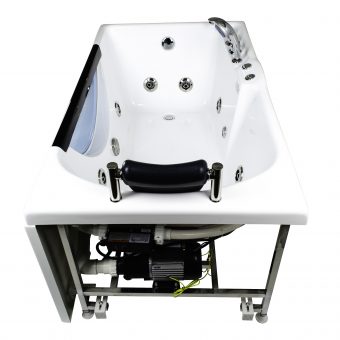

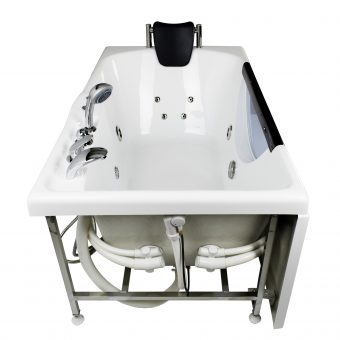

  • Removable skirt for easy service
  • Comfortable head rest

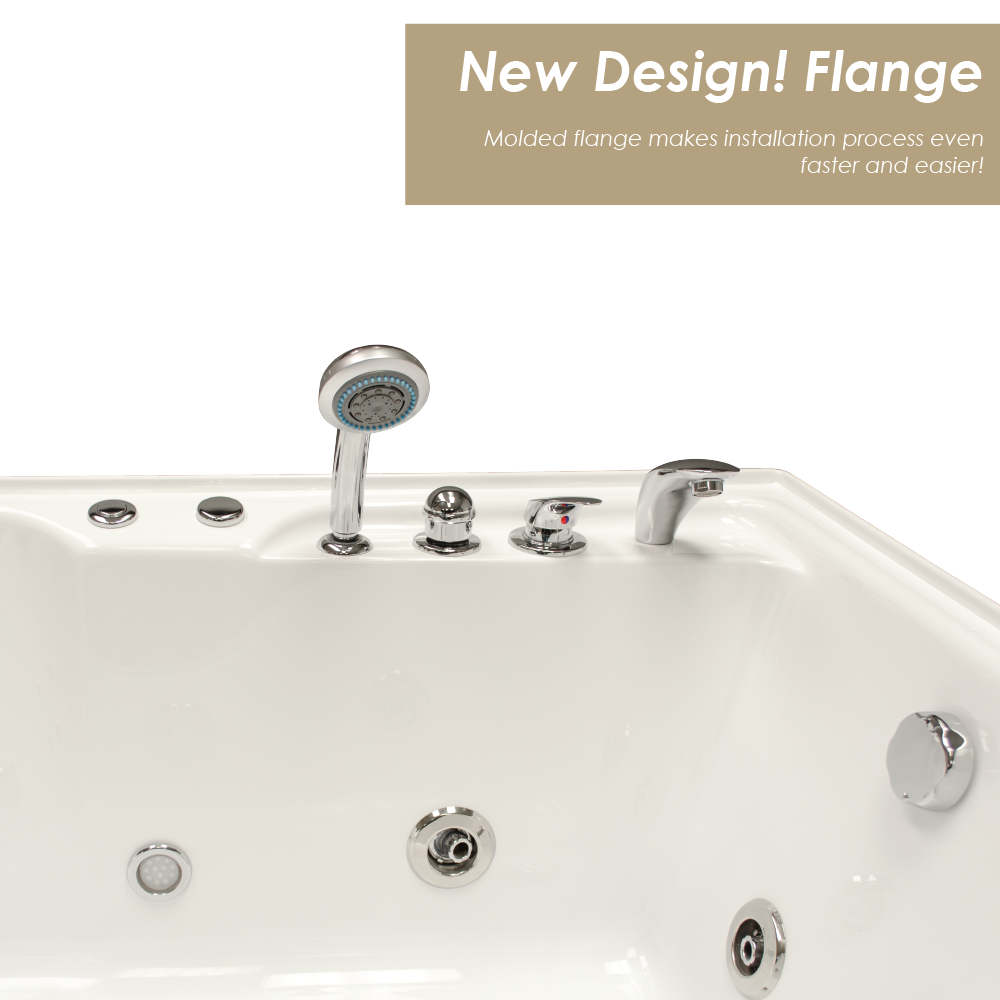

  • Pre-mounted faucet and tub filler
  • Contoured seating areas designed into tub floor

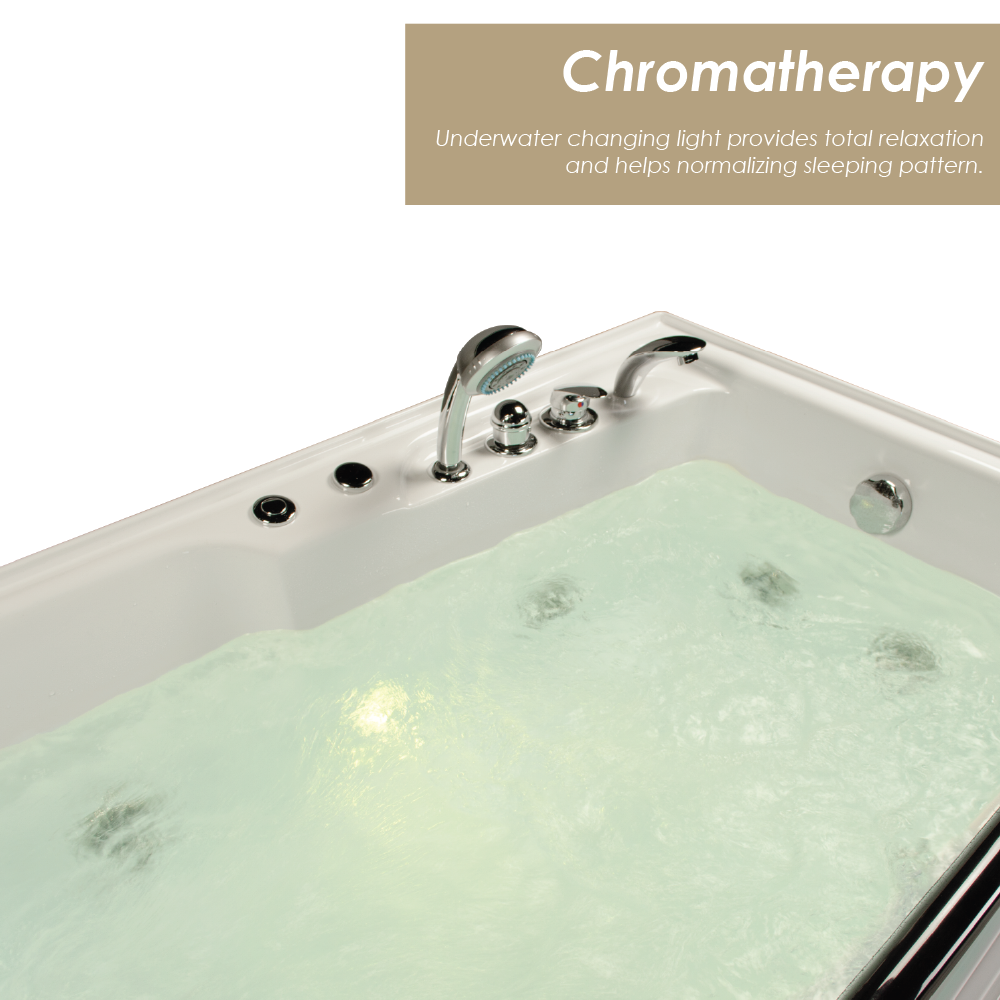

  • Underwater lighting
  • All tubs have adjustable height + or – an inch

Lowes Model Number: NE017, MG017

*The Company shall bear no responsibility whatsoever for any act or failure to act by any entities installing and/or delivering the Company’s products to its customers.

GENERAL INFORMATION

  • It is advised to have tub onsite before preparing drain location
  • Note: All tubs need to be leveled in its final resting position with all feet touching the ground

TECHNICAL INFORMATION

  • Materials: acrylic, tempered glass
  • Power Supply: 110V
  • Dimensions: 34.5 x 59.5 x 26.5H in

ELECTRICAL REQUIRMENTS

  • 1 dedicated 10-2 line for water pump (line 1, ground and neutral)
  • 110 volt, 30 amp GFCI breaker

PLUMBING REQUIRMENTS

  • The unit is equipped with hot and cold metal braided water supply hoses with ½ inch national pipe thread
  • Hot and cold shutoffs with ½ inch male national pipe thread (not included) should be installed
  • Supply hoses are to be connected from the faucet manifold on the unit to the shutoff valves
  • All water jet features are pre-plumbed with reinforced braided flexible supply hose
  • All fixtures and fittings should be checked for tightness as they may have ben loosened during transportation
  • Access panel area is recommended
  • Substituting the existing drain show for a different one will not void the warranty as long as there is no damage or evidence of misuse Note: The flexible drain hose that is included with this unit is designed for installation into a floor drain only


Technical Data:
MaterialsAcrylic, Tempered Glass
Power Supply110V
Size33.5 x 59.5 x 26.5 H in

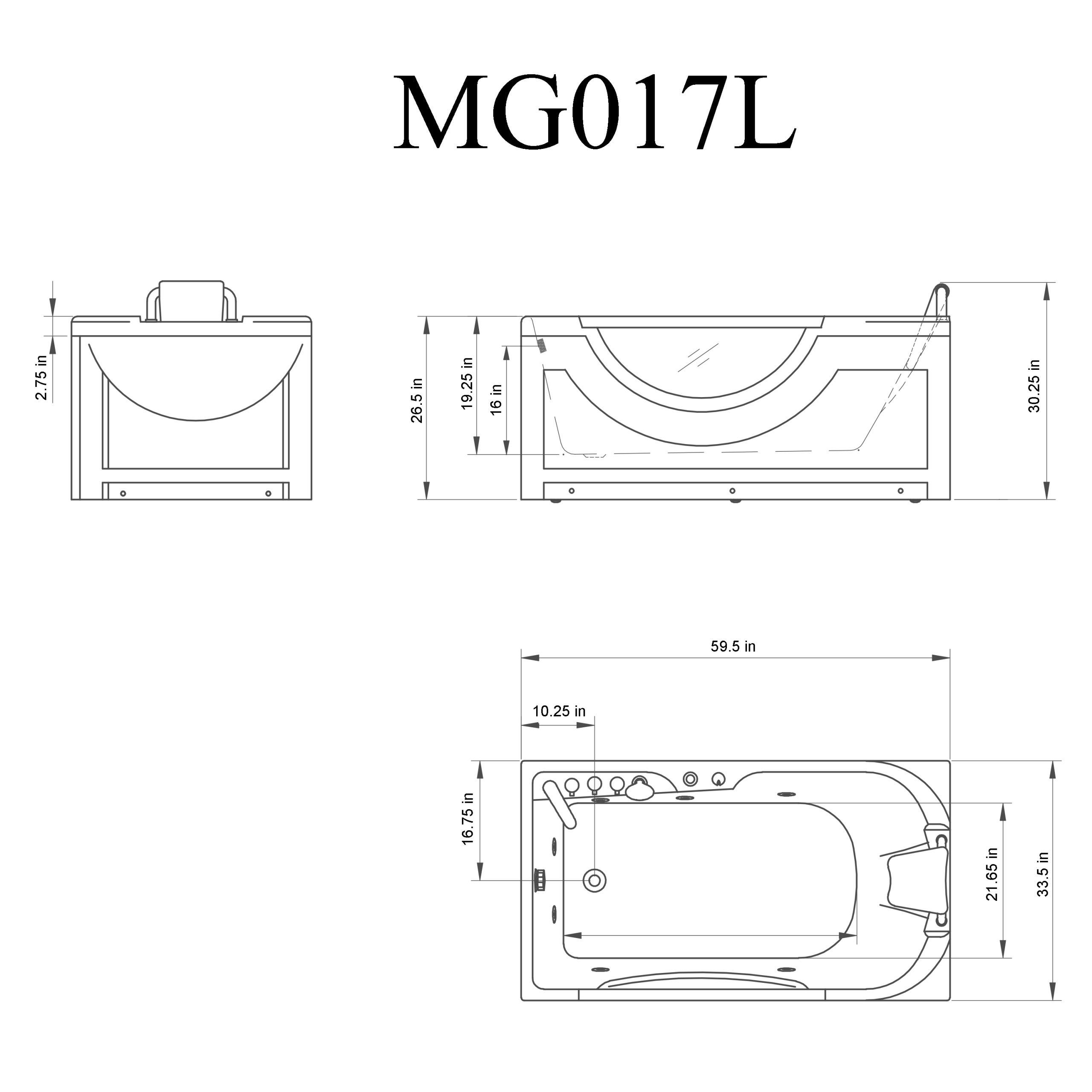

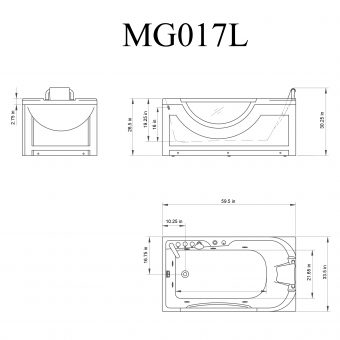

MG017L diagrams
MG017 LEXI TUB
