Orion Plus SMART Steam Room in White

Model #: M6028S

A spa in your own home. Homeward Bath’s Luxurious steam rooms are equipped with everything you need for total and complete relaxation. This tempered glass steam shower has, 6kW self-draining steam generator, a handheld shower head with adjustable settings for many different water spray patterns, and multi-colored LED lights illuminate the aroma therapy filled steam to create the ultimate relaxation experience. This model is also equipped with a Superior SMART System. Control your steam room from your phone at all times!

Category:

Category:

Description

  • Two Person Steam Shower
  • 6kW Self-Draining Steam Generator w/Steam Aromatherapy Cup
  • 5” Touch Screen SMART Wi-Fi Keypad
  • Low Threshold 2.75″ H Base included
  • Hand-held Shower w/ Various water massage settings & adjustable height bracket
  • UPC CERTIFIED Thermostatic / Anti-scald Faucet
  • “Special Process” white Tempered Glass walls and front Clear Glass
  • Built-in control key pad
  • “Chromotherapy” LED multiple Color Lighting
  • Waterproof shower grid
  • 2 removable benches
  • 2 accessory shelves
  • Hinged door
  • Available in Left or Right Controls

“Smart Life” Remote Start App is Available on:https://play.google.com/store/apps/details?id=com.tuya.smartlife&hl=en_US&pcampaignid=pcampaignidMKT-Other-global-all-co-prtnr-py-PartBadge-Mar2515-1

*click on your operating system App Market icon to download the Smart Life App



*The Company shall bear no responsibility whatsoever for any act or failure
to act by any entities installing and/or delivering the Company’s products
to its customers.

GENERAL INFORMATION

  • Additional space for the steam generator is needed.
  • Units come broken down in panels and are assembled with screws, nuts and bolts on site. This unit assembles from the inside for convenience.
  • Note: All shower bases may need to be set in mortar for leveling purposes.
  • It is advised to have base onsite before preparing drain location
  • Access panel area recommended
  • Manufacturer reserves the right to change specs or features at any time. Please check to confirm details. 1-866-783-2661

TECHNICAL INFORMATION

  • Materials: Acrylic, Aluminum, Tempered Glass
  • Power Supply: 220V

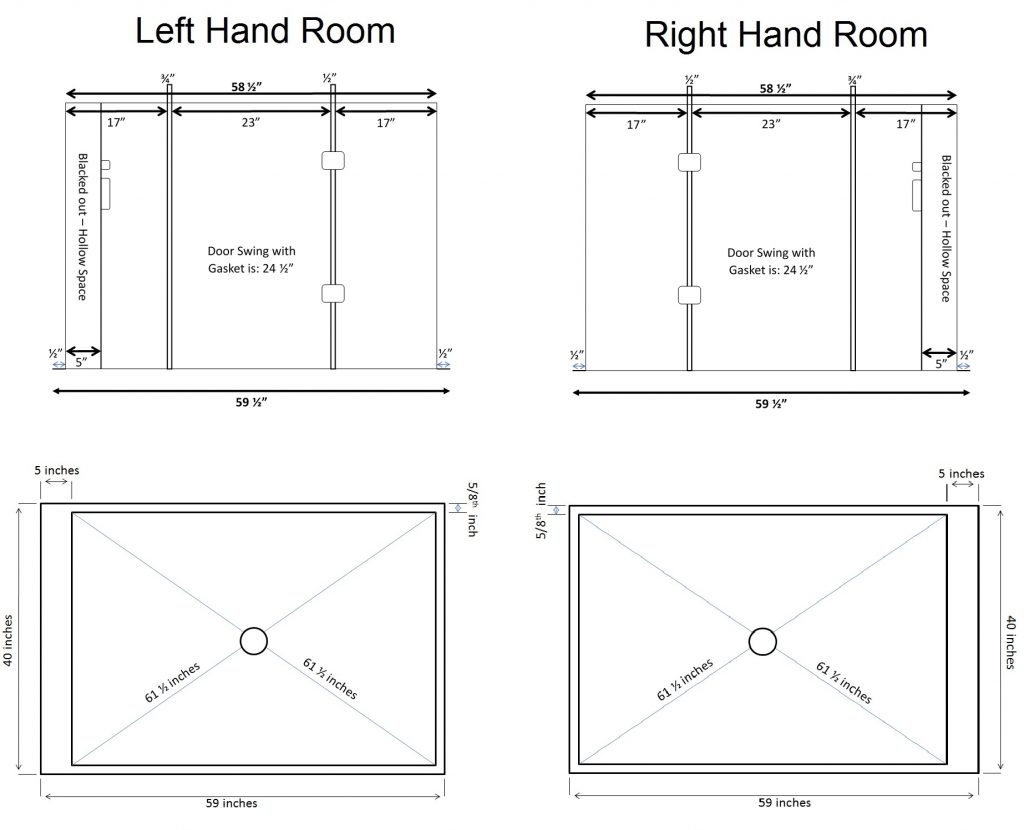

  • Dimensions: 59 x 40 x 84 IN*
*Additional space for the steam generator is needed outside of steam room shower dimensions.

ELECTRICAL INFORMATION

  • 220 volt, 30 amp GFCI breaker
  • 1 dedicated 10-2 line for steam (line 1, line 2, and ground)

PLUMBING REQUIREMENTS

  • The unit is equipped with hot and cold, metal braided ½ inch water supply hose with ½ national pipe thread.
  • Need to install hot and cold shutoffs with ½ -male national pipe thread (not included).
  • Supply hoses are to connect from the faucet manifold on the unit to the shutoff valves.
  • All fixtures and fittings must be checked for tightness as they may have been loosened during transport. It is advised to have base onsite before preparing drain location. Access panel advised.
  • Please contact Homeward Bath for special instructions regarding connection of the steam generator drain and steam cup drain to the main drain.


Technical Data:
MaterialsTempered Glass
Power Supply220V, 6kW
Steam Ready5 Minutes
Size59 x 40 x 86 IN*
*Additional space for the steam generator is needed outside of steam room shower dimensions.


Manuals
