Superior 09 Steam Generator Kit

Model #: 9KW

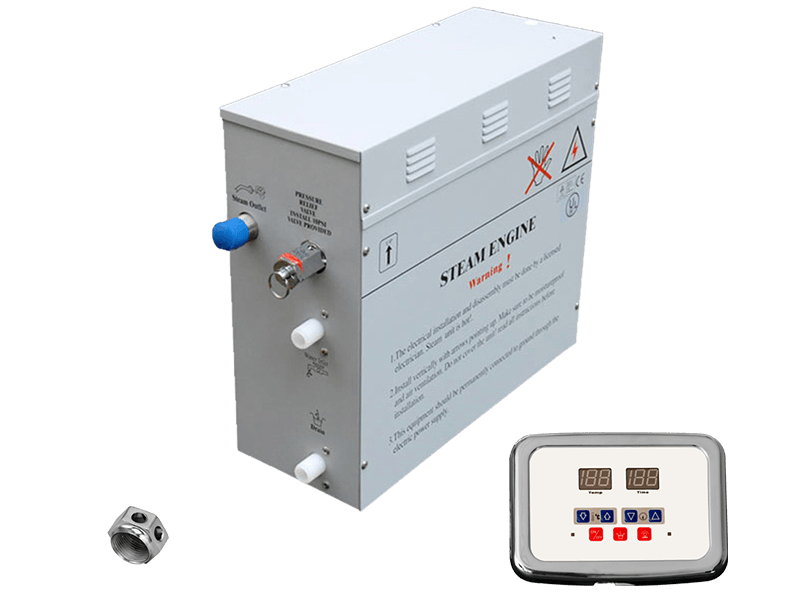

Transform your shower into a private spa and enjoy all the therapeutic and relaxing benefits of steam with Steam Planet’s “all in one” Steam Generator Package. Soothe your tired muscles, hydrate your skin, enhance and improve your breathing, help with weight loss and achieve a more restful sleep. Steam Planet Steam generators come with everything you need for you own personal spa. Included; Steam generator box, control panel, 16 ft. of wiring for the control panel, steam outlet with aromatherapy reservoir built in. Keypad/Trim colors: Black/Satin Brass, Black/Chrome, White/Chrome, White/Satin Brass.

INSTALLATION VIDEO:

Category:

Description

Steam generator 9 kW

  • Self-draining steam generator
  • Control Panel which can be mounted inside or outside of the Shower Room
  • 20 feet of connecting wire for control panel
  • Temperature Sensor
  • Keypad/Trim colors: Black/Satin Brass, Black/Chrome, White/Chrome, White/Satin Brass
  • Generator is supplied with a single ¾” steam head; Chrome or Satin Brass steam head with aroma therapy outlet
  • 12V light output wire
  • Heats 320-460; to calculate correct cubic feet length x height x width x 2

UPGRADE ACCESSORIES

  • Light Kits available in White or Chromotherapy
  • Stainless Steel Drip Pan with Drain – 20x10x1; Weight 3lbs

*The Company shall bear no responsibility whatsoever for any act or failure to act by any entities installing and/or delivering the Company’s products to its customers.

TECHNICAL INFORMATION

  • Dimensions: 19 ½”L x 6 ½”W x 14 ½”H
  • Steam outlet: single ¾" outlet
  • Cubic footage steam room: 320-460 ft3
  • 20 feet of connecting wire for control panel
  • 12 V light output wire
  • 220-volt/8-2 wire-50amp GFCI breaker (2 hot lines and 1 ground line)
  • Water inlet and drain valves require ½ in. NPT fillings.


Technical Data:
Power Supply220-240V, 50/60Hz, 1 Phase
